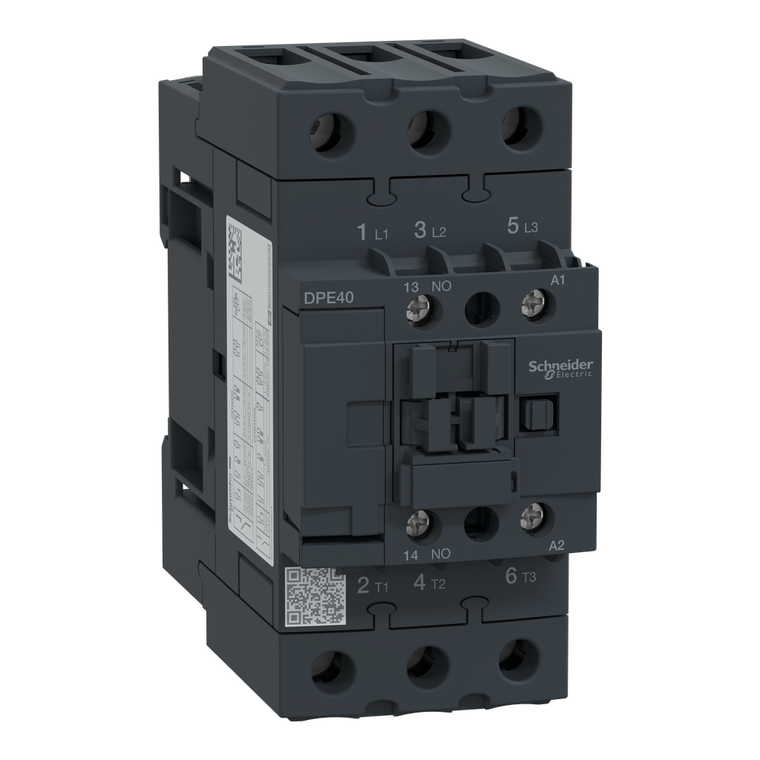

Schneider Electric DPE40G7 IEC contactor,Easy TeSys DPE,nonreversing,40A,3P,25HP at 480V AC,120V AC 50/60Hz coil

(No reviews yet) Write a Review
SKU:
DPE40G7
MPN:
DPE40G7
Condition:
New
Product Name:
Easy TeSys DPE
Auxiliary Contacts Type:
mechanically linked 1 NO IEC 60947-5-1
Range:
Easy TeSys
Irms Rated Making Capacity:
140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
Fire Resistance:
850°C IEC 60695-2-1
Width:
55 mm
Pollution Degree:
3
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Product Certifications:
cULus
Utilisation Category:
AC-1 || AC-3
Weight:
0.89 kg
Device Short Name:
DPE
Eu Rohs Directive:
Compliant
Heat Dissipation:
4-5 W 60 Hz
Net Weight:
0.89 kg
[Icw] Rated Short-Time Withstand Current:
320 A 40°C - 10 s for power circuit || 720 A 40°C - 1 s for power circuit || 72 A 40°C - 10 min for power circuit || 165 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
Poles Description:
3P
Ip Degree Of Protection:
IP20 front face IEC 60529
Minimum Switching Current:
5 mA for Signaling circuit
Mounting Support:
rail || plate
Mechanical Robustness:
vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
Sustainable Offer Status:
Green Premium product
Reach Free Of Svhc:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Hold-In Power Consumption In Va:
13-13 VA 60 Hz cos phi 0.3 (at 20°C)
Maximum Horse Power Rating:
3 hp at 115 V AC 50/60 Hz for 1 phase motors || 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 30 hp at 460/480 V AC 50/60 Hz for 3 phase
Coil Technology:
without built-in suppressor module
Control Circuit Type:
AC 60 Hz
Electrical Durability:
0.6 Mcycles 60 A AC-1 <= 440 V || 1 Mcycles 40 A AC-3 <= 440 V
Average Impedance:
1.5 mOhm - Ith 60 A 50 Hz for power circuit
Tightening Torque:
power circuit 7 N.m screw connectors 16-25 mm² hexagonal 4 mm || power circuit 5 N.m screw connectors 2.5-16 mm² hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø
Standards:
CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1
Product Or Component Type:
contactor
Motor Power Kw:
11 kW 220...230 V AC 50/60 Hz || 18.5 kW 380...400 V AC 50/60 Hz || 22 kW 415...440 V AC 50/60 Hz || 22 kW 500 V AC 50/60 Hz || 30 kW 660...690 V AC 50/60 Hz
Rohs Exemption Information:
Yes
Associated Fuse Rating:
10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
Signaling Circuit Frequency:
25...400 Hz
Insulation Resistance:
> 10 MOhm for Signaling circuit
Operating Altitude:
0...6561.68 ft (0...2000 m)
Connections - Terminals:
power circuit: screw connection 1 2.5-25 mm² - cable stiffness: flexible without cable end || power circuit: screw connection 2 2.5-16 mm² - cable stiffness: flexible without cable end || power circuit: screw connection 1 2.5-25 mm² - cable stiffn
Contactor Application:
motor control || resistive load
Maximum Operating Rate:
3600 cyc/h 60°C
Circularity Profile:
ENVEOLI1503009EN
Climatic Withstand:
IACS E10 || IEC 60947-1 Annex Q category D
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mechanical Durability:
5 Mcycles
[Uc] Control Circuit Voltage:
120 V AC 60 Hz
$85.00

Description

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3 (25HP@480V). It provides a 120 VAC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
