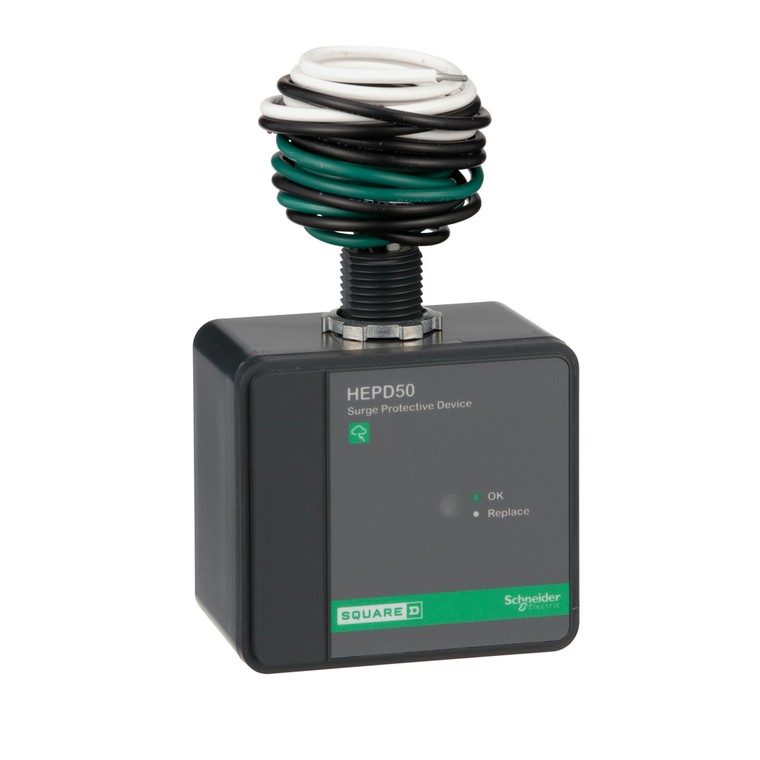

Schneider Electric HEPD50W Surge protection device, HEPD, 50kA, 120/240VAC, 1 phase, 3 wire, SPD type 1, wholesale

Schneider Electric HEPD50W Surge protection device, HEPD, 50kA, 120/240VAC, 1 phase, 3 wire, SPD type 1, wholesale

Schneider Electric
SKU:
HEPD50W
$108.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Surgelogic™ Type HEPD are designed to be compact and affordable surge suppressors for residential electrical panels. Being NEMA Type 4X makes these products capable of being used inside or outside residential electrical panels. With a surge current rating of 50,000 Amps, surge suppression for incompatible appliances with plug strips is ensured. This product is UL and CSA certified.
Additional Information
Short-Circuit Protection:
25 kA
Product Destination:
load center
Surge Current:
50 kA per phase
[Ue] Rated Operational Voltage:
120/240 V AC
Range Of Product:
Square D
Product Or Component Type:
surge protection device
Input Voltage:
600 V L-N || 600 V L - G || 1000 V L - L || 900 V N - G
Phase:
1 phase
[Uc] Maximum Continuous Operating Voltage:
150 V
Ambient Air Temperature For Operation:
-35-65°C
Nominal Discharge Current:
10 kA
Country of Origin:
Mexico
Nema Degree Of Protection:
NEMA 4X
Depth:
2.10 in
Eu Rohs Directive:
Under investigation
Local Signaling:
1 LED green normal operation
Wiring Configuration:
3-wire (isolated ground)
Standards:
UL 1449 || CSA C22.2 No 8 || cUL || UL 1449:ed. 4: type II
Type Of Packing:
wholesale
Device Short Name:
HEPD
