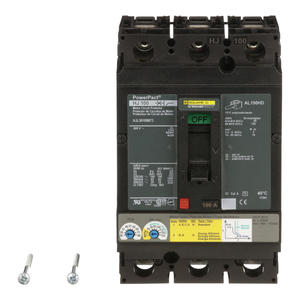

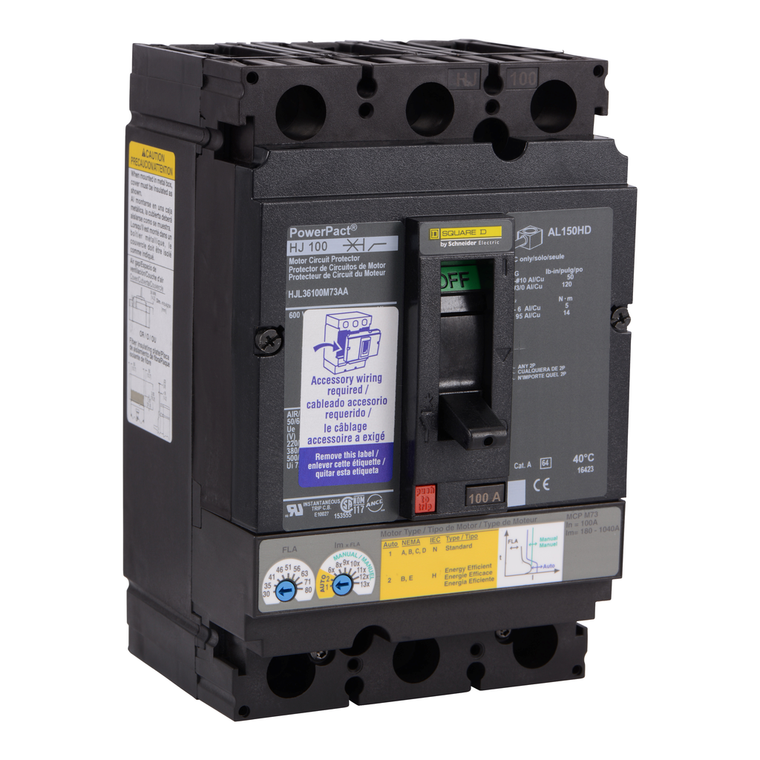

Schneider Electric HJL36100M73AA Motor Circuit Protector 600V 100A
Schneider Electric
$1,943.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. This unit includes a factory installed 1A/1B auxiliary switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Mounting Mode:
- unit mount lug)
- Utilisation Category:
- category A
- Line Rated Current:
- 100-100 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP2206027EN
- Control Type:
- toggle
- Pvc Free:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Mercury Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Magnetic Tripping Current:
- 180-1040 A
- Net Weight:
- 2.2 kg
- Product Or Component Type:
- Motor Circuit Protector
- Width:
- 104 mm
- Quantity Per Set:
- 1
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Height:
- 163 mm
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Network Frequency:
- 50/60 Hz
- Quality Labels:
- CE
- Terminal Identifier:
- AL150HD
- Product Name:
- PowerPact H
- Eu Rohs Directive:
- Compliant with Exemptions
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Electrical Connection:
- lugs, line || lugs, load
- Circularity Profile:
- ENVEOLI2206027EN
- Communication Interface:
- Modbus || Ethernet
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Range:
- PowerPact
- Pollution Degree:
- 3 IEC 60947-1
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Warranty:
- 18 months
- Poles Description:
- 3P
- Accessory / Separate Part Type:
- auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Ith] Conventional Free Air Thermal Current:
- 30-80 A
- Breaking Capacity Code:
- J
- Protected Poles Description:
- 3t
- Depth:
- 86 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mounting Support:
- lug
- Trip Unit Technology:
- thermal-magnetic
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Continuous Current Rating:
- 0.8
- Sustainable Offer Status:
- Green Premium product
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Rohs Exemption Information:
- Yes
- Wire Stripping Length:
- 16 mm
- Device Application:
- distribution
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Color:
- Black
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
