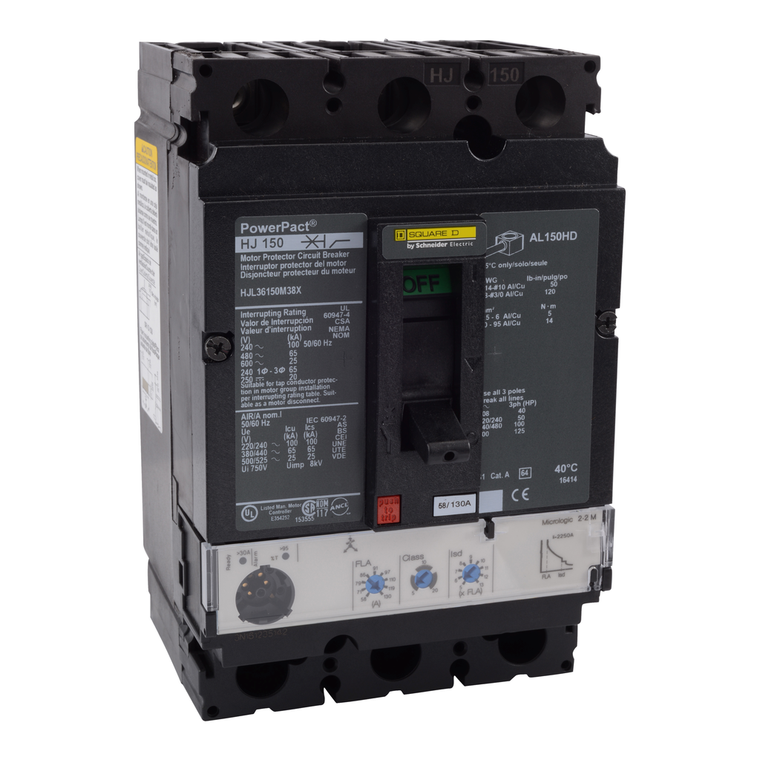

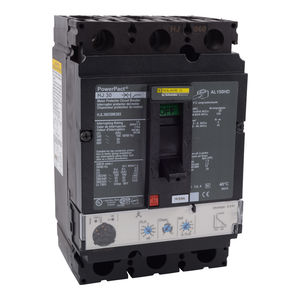

Schneider Electric HJL36150M38X Motor circuit protector, PowerPacT H, 150A, 3 pole, 600VAC, 25kA, lugs, Micrologic 2.2M, 80%

Schneider Electric HJL36150M38X Motor circuit protector, PowerPacT H, 150A, 3 pole, 600VAC, 25kA, lugs, Micrologic 2.2M, 80%

Schneider Electric
SKU:
HJL36150M38X
$4,177.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. Additionally, Micrologic 2.2M trip units provide thermal protection for overload and phase unbalance. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Additional Information
Rohs Exemption Information:
Yes
Control Type:
toggle
Product Certifications:
UL || CSA || NOM
Pvc Free:
Yes
Quantity Per Set:
1
Country of Origin:
United States
Depth:
86 mm
Range:
PowerPact
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ip Degree Of Protection:
front cover IP40 IEC 60529
Protected Poles Description:
3t
Ambient Air Temperature For Operation:
-25-70°C
Poles Description:
3P
Line Rated Current:
150-150 A
Net Weight:
2.2 kg
Length:
16 mm
Product Name:
PowerPact H
Protection Type:
short-circuit protection || overload protection || phase unbalance
Pollution Degree:
3 IEC 60947-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
ENVEOLI2206028EN
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Mounting Mode:
unit mount lug)
Mercury Free:
Yes
Weight:
2.2 kg
Quality Labels:
CE
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Wire Stripping Length:
16 mm
Environmental Disclosure:
ENVPEP2206028EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Terminal Identifier:
AL150HD
Trip Unit Name:
MicroLogic 2.2 M
Device Application:
distribution
Network Frequency:
50/60 Hz
Ambient Air Temperature For Storage:
-50-85°C
Utilisation Category:
category A
Continuous Current Rating:
0.8
Color:
Black
[Ith] Conventional Free Air Thermal Current:
58-130 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Communication Interface:
Modbus || Ethernet
Warranty:
18 months
Electrical Connection:
lugs, line || lugs, load
