Schneider Electric

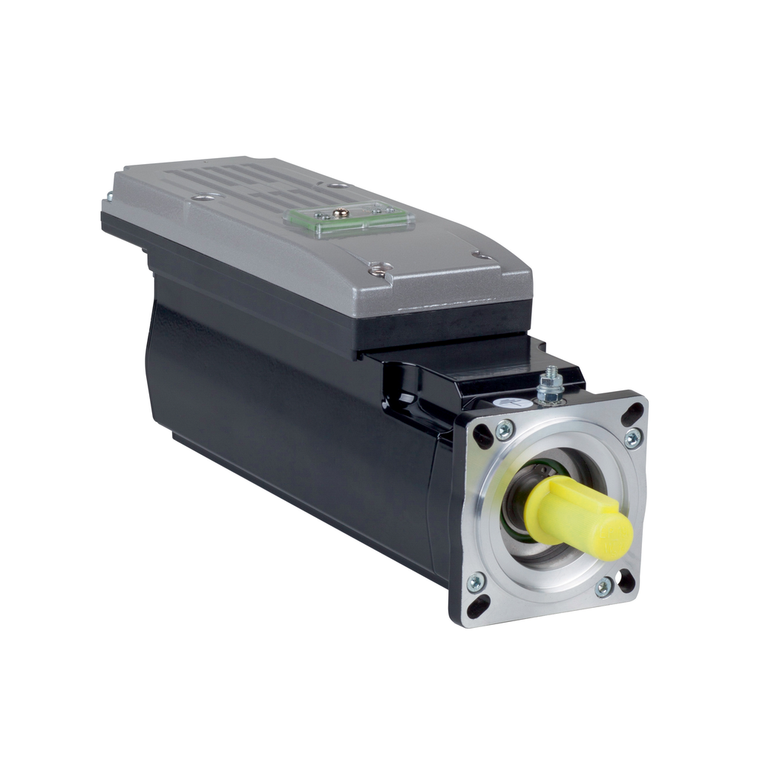

Schneider Electric ILM0702P32A0000 integrated servo motor- 1.7 Nm-6000 rpm-keyed shaft-multiturn-without brake-IP65

SKU:

ILM0702P32A0000

UPC:

MPN:

ILM0702P32A0000

Condition:

New

Mercury Free:

Yes

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Motor Flange Size:

70 mm

Nominal Torque:

1.15 N.m

Holding Brake:

without

Net Weight:

3.4 kg

Sustainable Offer Status:

Green Premium product

Rotor Inertia:

0.41 kg.cm²

Pvc Free:

Yes

Circularity Profile:

ENVEOLI1409011EN

Speed Feedback Resolution:

128 periods

Stator Inductance:

19 mH 20°C Ph/Ph || 9.5 mH 120°C Ph/N

Shaft Length:

23 mm

Line Rated Current:

1.5 A

Width:

18 mm

Shaft Diameter:

11 mm

Maximum Radial Force Fr:

710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm

Second Shaft:

without second shaft end

Nominal Output Power:

720 W

Peak Stall Torque:

7.6 N.m

Number Of Mounting Holes:

4

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Feedback Type:

absolute multiturn SinCos Hiperface

Type Of Cooling:

natural convection

Continuous Stall Current:

2.5 A

Circle Diameter Of The Mounting Holes:

82 mm

Centring Collar Depth:

2.5 mm

Warranty:

18 months

Environmental Disclosure:

ENVPEP1409011EN

[Us] Rated Supply Voltage:

250...700 V

Device Short Name:

ILM

Torque Constant:

0.76 N.m/A 120°C

Weight:

3.4 kg

Mounting Support:

international standard flange

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Axial Force Fa:

0.2 x Fr

Nominal Speed:

6000 rpm

Shaft End:

keyed

Country of Origin:

United States

Range Of Product:

PacDrive 3

Number Of Motor Poles:

6

Number Of Motor Stacks:

2

Centring Collar Diameter:

60 mm

China Rohs Regulation:

X

Mounting Holes Diameter:

5.5 mm

Reach Free Of Svhc:

Yes

Stator Resistance:

4.2 Ohm 20°C Ph/Ph || 2.92 Ohm 120°C Ph/N
