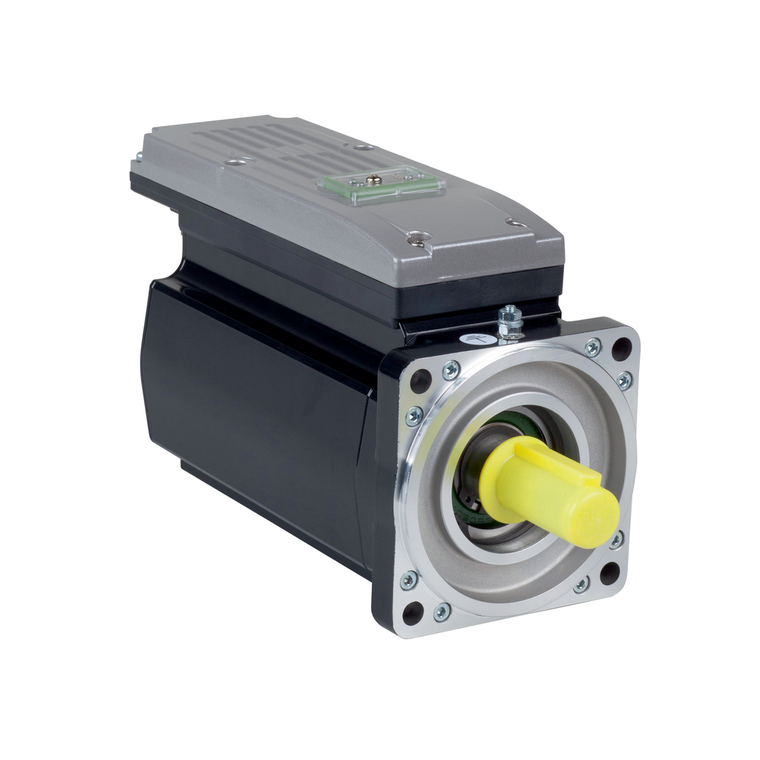

Schneider Electric ILM1001P12F0000 integrated servo motor - 2.5 Nm - 3000 rpm - keyed shaft - multiturn- with brake
SKU:
ILM1001P12F0000
UPC:
MPN:
ILM1001P12F0000
Condition:
New
Number Of Motor Poles:
8
Net Weight:
5.7 kg
Shaft Length:
40 mm
Range Of Product:
PacDrive 3
Continuous Stall Torque:
2.5 N.m
Width:
30 mm
Peak Stall Torque:
9.6 N.m
Nominal Torque:
1.9 N.m
Product Or Component Type:
servo motor integrated drive
Circle Diameter Of The Mounting Holes:
115 mm
Speed Feedback Resolution:
128 periods
Torque Constant:
1.39 N.m/A 120°C
Pvc Free:
Yes
Maximum Axial Force Fa:
0.2 x Fr
Holding Torque:
5.5 N.m holding brake
Stator Inductance:
45.7 mH 20°C Ph/Ph || 22.85 mH 120°C Ph/N
Shaft Diameter:
19 mm
Centring Collar Diameter:
95 mm
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm
Shaft End:
keyed
Feedback Type:
absolute multiturn SinCos Hiperface
Mounting Holes Diameter:
9 mm
Mounting Support:
international standard flange
Rotor Inertia:
2.1 kg.cm²
Device Short Name:
ILM
Warranty:
18 months
Weight:
5.7 kg
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Number Of Motor Stacks:
1
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Nominal Speed:
3000 rpm
Holding Brake:
with
Country of Origin:
United States
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Current Irms:
7.4 A
Circularity Profile:
ENVEOLI1409011EN
Motor Flange Size:
100 mm
Type Of Cooling:
natural convection
[Us] Rated Supply Voltage:
250...700 V
Continuous Stall Current:
1.8 A
Environmental Disclosure:
ENVPEP1409011EN
Key Width:
30 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
