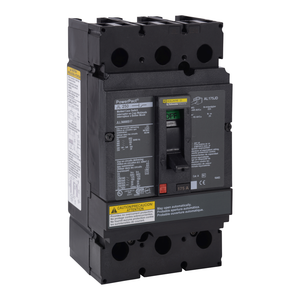

Schneider Electric JGL36000S17 Automatic Molded Case Switch 600V 175A

(No reviews yet) Write a Review
SKU:
JGL36000S17
UPC:
785901602330
Condition:
New
Product Or Component Type:
automatic switch
Width:
2.74 in
Electrical Connection:
lugs, line || lugs, load
Breaking Capacity Code:
G
Poles Description:
3P
Mounting Mode:
unit mount
[Ue] Rated Operational Voltage:
600 V AC
Height:
7.52 in
Circuit Breaker Type:
J-frame
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
175 A
Trip Unit Technology:
magnetic
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Short-Circuit Withstand:
65 kA 240 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Awg Gauge:
x AWG 4...AWG 4/0 ( aluminium/copper )
Tightening Torque:
26-26 N.m 25-95 mm² (AWG 4...AWG 4/0)
Environmental Disclosure:
ENVPEP2206031EN
Depth:
5 in
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range Of Product:
PowerPact J
Terminal Identifier:
AL175JD
Eu Rohs Directive:
Compliant with Exemptions
Magnetic Tripping Current:
3125-3125 A
Pvc Free:
Yes
Circularity Profile:
ENVEOLI2206031EN
Product Certifications:
CSA || UL Listed || IEC
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric JGL36000S17 Automatic Molded Case Switch 600V 175A
  • Schneider Electric JGL36000S17 Automatic Molded Case Switch 600V 175A
  • Schneider Electric JGL36000S17 Automatic Molded Case Switch 600V 175A
$2,286.00

Description

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT J, 175A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL and CSA standards.
