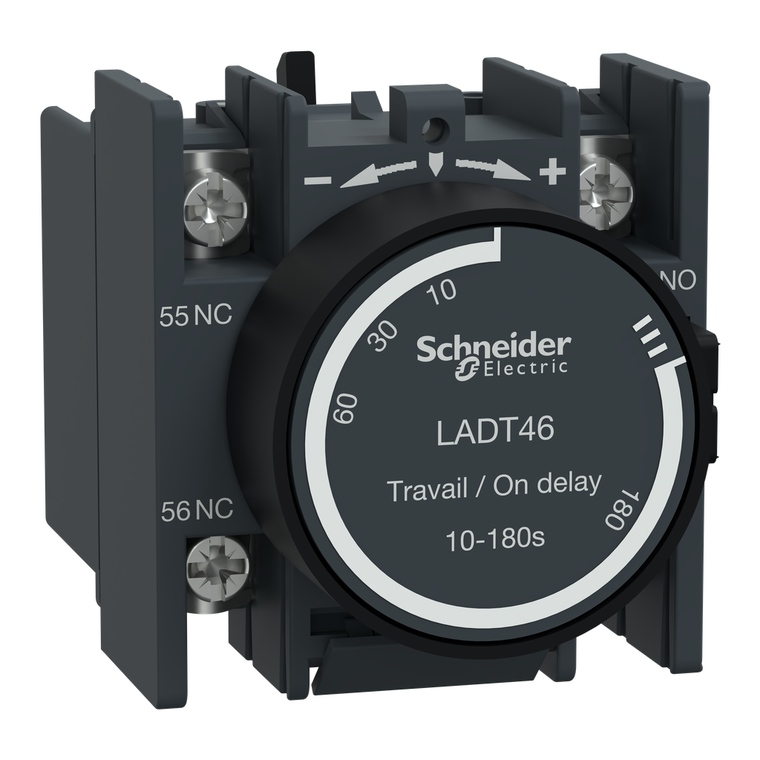

Schneider Electric LADT46 Time delay auxiliary contact block, TeSys Deca, 1NO + 1NC, on delay 10-180s, front, lugs-ring terminals

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LADT46 Time delay auxiliary contact block, TeSys Deca, 1NO + 1NC, on delay 10-180s, front, lugs-ring terminals

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LADT46

UPC:

MPN:

LADT46

Condition:

New

Product Or Component Type:

time delay auxiliary contact block

Time Delay Range:

10...180 s

Tightening Torque:

1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Country of Origin:

France

Ambient Air Temperature For Storage:

-60-80°C

Non-Overlap Time:

1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact

Minimum Switching Voltage:

17 V

Mercury Free:

Yes

Minimum Switching Current:

5 mA

[Ie] Rated Operational Current:

6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13

Permissible Short-Time Rating:

100 A 60°C 1 s || 120 A 60°C 500 ms || 140 A 60°C 100 ms

Timer Type:

on delay

Ambient Air Temperature For Operation:

-40-70°C

Auxiliary Contacts Operation:

time delay

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C)

Protective Treatment:

TH IEC 60068

Rohs Exemption Information:

Yes

Depth:

61 mm

Sustainable Offer Status:

Green Premium product

Pvc Free:

Yes

Irms Rated Making Capacity:

140 A AC || 250 A DC

Ip Degree Of Protection:

IP2X conforming to IEC 60529

Color:

dark grey

Product Certifications:

CB || UL || CSA || CCC || UKCA

Pole Contact Composition:

1 NO + 1 NC

Protection Type:

gG fuse 10 A

Range:

TeSys || TeSys Deca

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

[Ui] Rated Insulation Voltage:

690 V IEC 60947-5-1 || 600 V UL || 600 V CSA

Warranty:

18 months

Range Compatibility:

TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D

Mechanical Durability:

5 Mcycles

Standards:

EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN 50012 || IEC 60335-1:Clause 30.2 || IEC 60335-2-40:Annex JJ || UL 60335-2-40:Annex JJ

Environmental Disclosure:

ENVPEP110702EN_V01

Product Name:

TeSys Deca

Connections - Terminals:

lugs-ring terminals 8 mm)

Eu Rohs Directive:

Compliant with Exemptions

Environmental Characteristic:

normal environment

Insulation Resistance:

> 10 MOhm

Mounting Location:

front

California Proposition 65:

WARNING: Cancer - www.P65Warnings.ca.gov

Operating Altitude:

9842.52 ft (3000 m)

[Ue] Rated Operational Voltage:

690 V AC 25...400 Hz
