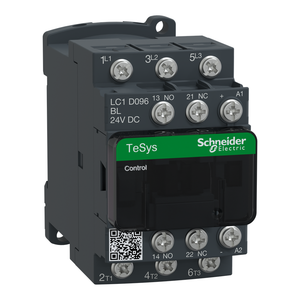

Schneider Electric LC1D096BLS207 IEC contactor, TeSys D, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D096BLS207 IEC contactor, TeSys D, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D096BLS207

UPC:

MPN:

LC1D096BLS207

Condition:

New

Time Constant:

37 ms

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz

Protective Cover:

with

Motor Power Kw:

2.2 kW at 220/230 V AC 50 Hz (AC-3) || 4 kW at 380/400 V AC 50 Hz (AC-3) || 4 kW at 415 V AC 50 Hz (AC-3) || 4 kW at 440 V AC 50 Hz (AC-3) || 5.5 kW at 500 V AC 50 Hz (AC-3) || 5.5 kW at 660/690 V AC 50 Hz (AC-3) || 2.2 kW at 220/230 V AC 50 Hz (AC-3

Power Dissipation Per Pole:

1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e

Maximum Operating Rate:

3600 cyc/h 60°C

Device Short Name:

LC1D

Tightening Torque:

control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3

Average Impedance:

2.5 mOhm - Ith 25 A 50 Hz for power circuit

Mounting Support:

rail || plate

Irms Rated Making Capacity:

250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1

Minimum Switching Current:

5 mA for Signaling circuit

Connections - Terminals:

control circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 9.5 mm

Pole Contact Composition:

3 NO

Minimum Switching Voltage:

17 V for Signaling circuit

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Operating Time:

77±15 % ms closing || 25±20 % ms opening

Contactor Application:

resistive load || motor control

Range:

TeSys || TeSys Deca

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Product Certifications:

IEC || CCC || EAC || UA || TR || UKCA || CB

Weight:

0.32 kg

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Mechanical Durability:

30 Mcycles

Mercury Free:

Yes

Net Weight:

0.32 kg

Poles Description:

3P

Compatibility Code:

LC1D

Pvc Free:

Yes

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit

Control Circuit Type:

DC low consumption

Sustainable Offer Status:

Green Premium product

Utilisation Category:

AC-1 || AC-3 || AC-3e

Electrical Durability:

0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V

Operating Altitude:

0...9842.52 ft (0...3000 m)

Rated Breaking Capacity:

250 A at 440 V for power circuit conforming to IEC 60947

Fire Resistance:

850°C IEC 60695-2-1

Country of Origin:

France

[Ie] Rated Operational Current:

9 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 25 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 9 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Circularity Profile:

N/A

Auxiliary Contact Composition:

1 NO + 1 NC

Coil Technology:

with integral suppression device

Product Or Component Type:

contactor

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Insulation Resistance:

> 10 MOhm for Signaling circuit
