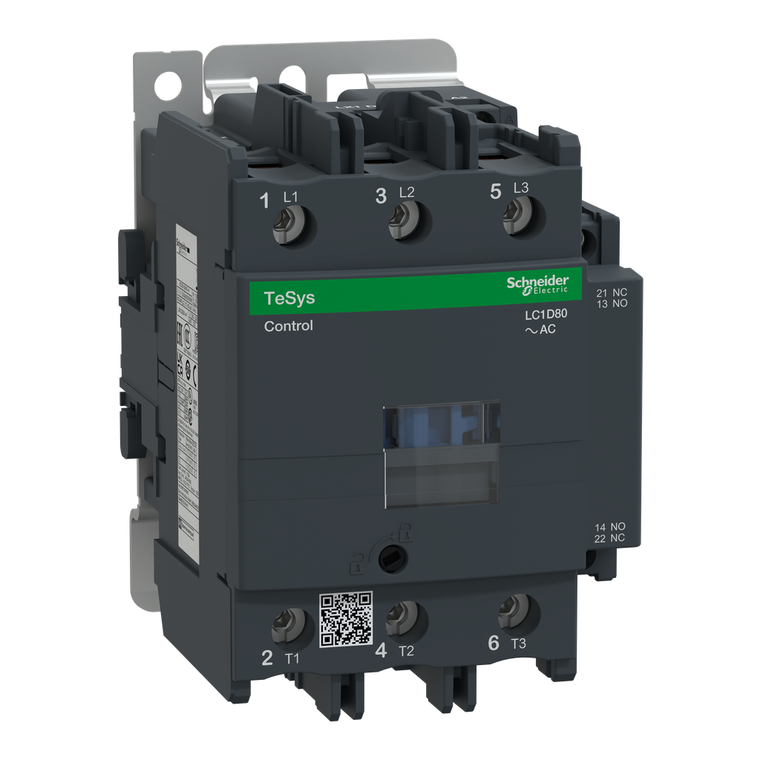

Schneider Electric LC1D80B7 IEC contactor, TeSys Deca, nonreversing, 80A, 60HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D80B7 IEC contactor, TeSys Deca, nonreversing, 80A, 60HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D80B7

UPC:

MPN:

LC1D80B7

Condition:

New

Utilisation Category:

AC-3 || AC-3e || AC-4 || AC-1

Electrical Durability:

0.8 Mcycles 125 A AC-1 <= 440 V || 1.5 Mcycles 80 A AC-3 <= 440 V || 1.5 Mcycles 80 A AC-3e <= 440 V

[Ue] Rated Operational Voltage:

power circuit <= 300 V DC 25...400 Hz || power circuit <= 690 V AC

Signaling Circuit Frequency:

25...400 Hz

Standards:

EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 60947-4-1 || IEC 60335-2-40:Annex JJ || UL 60335-2-40:Annex JJ || IEC 60335-1:Clause 30.2

Poles Description:

3P

Sustainable Packaging:

Yes

Weight:

1.59 kg

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Coil Technology:

without built-in suppressor module

Pole Contact Composition:

3 NO

Reach Free Of Svhc:

Yes

Power Dissipation Per Pole:

5.1 W AC-3 || 12.5 W AC-1 || 5.1 W AC-3e

Operating Altitude:

0...9842.52 ft (0...3000 m)

Pollution Degree:

3

Auxiliary Contact Composition:

1 NO + 1 NC

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 1100 A at 440 V for power circuit conforming to IEC 60947

Circularity Profile:

N/A

Hold-In Power Consumption In Va:

26-26 VA 60 Hz cos phi 0.3 (at 20°C) || 26-26 VA 50 Hz cos phi 0.3 (at 20°C)

Device Short Name:

LC1D

Average Impedance:

0.8 mOhm - Ith 125 A 50 Hz for power circuit

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Operating Time:

20...35 ms closing || 6...20 ms opening

Tightening Torque:

control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector flat Ø 6 to Ø 8 mm || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 200 A gG at <= 690 V coordination type 1 for power circuit || 160 A gG at <= 690 V coordination type 2 for power circuit

Rated Breaking Capacity:

1100 A at 440 V for power circuit conforming to IEC 60947

Insulation Resistance:

> 10 MOhm for Signaling circuit

Warranty:

18 months

Flame Retardance:

V1 conforming to UL 94

Contactor Application:

motor control || resistive load

[Icw] Rated Short-Time Withstand Current:

640 A 40°C - 10 s for power circuit || 990 A 40°C - 1 s for power circuit || 135 A 40°C - 10 min for power circuit || 320 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947

Overvoltage Category:

III

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Net Weight:

1.59 kg

Country of Origin:

Czechia

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Minimum Switching Voltage:

17 V for Signaling circuit

Maximum Horse Power Rating:

7.5 hp at 120 V AC 50/60 Hz for 1 phase motors || 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 30 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 30 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 60 hp at 460/480 V AC 50/60 Hz for 3 phas

Control Circuit Type:

AC 50/60 Hz standard

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || shocks contactor open 8 Gn for 11 ms) || vibrations contactor closed 3 Gn, 5...300 Hz) || shocks contactor closed 10 Gn for 11 ms)

Range Of Product:

TeSys Deca

Inrush Power In Va:

245-245 VA 60 Hz cos phi 0.75 (at 20°C) || 245-245 VA 50 Hz cos phi 0.75 (at 20°C)

Compatibility Code:

LC1D
