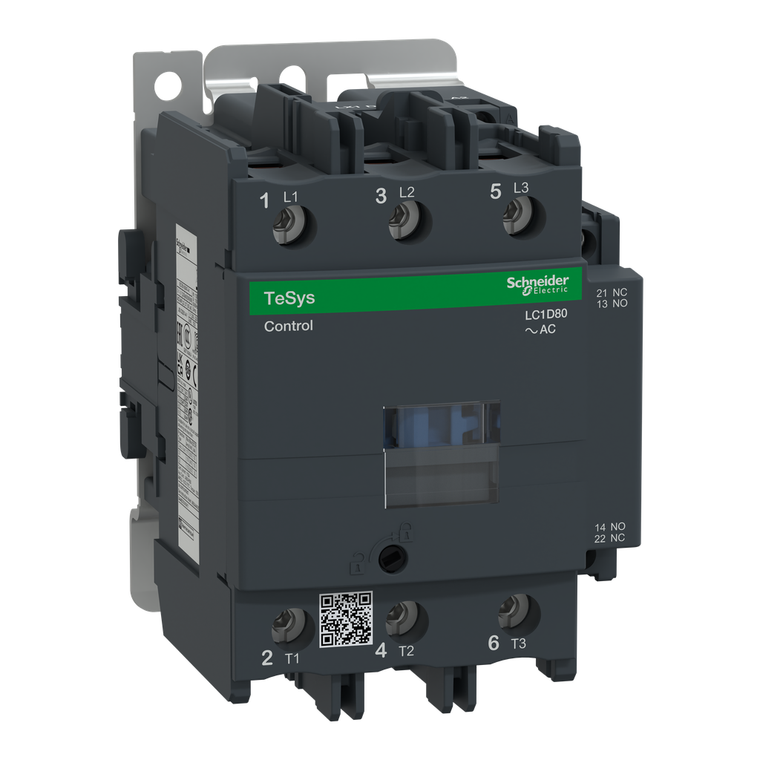

Schneider Electric LC1D80T6 IEC contactor, TeSys Deca, nonreversing, 80A, 60HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 480VAC 60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D80T6 IEC contactor, TeSys Deca, nonreversing, 80A, 60HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 480VAC 60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D80T6

UPC:

MPN:

LC1D80T6

Condition:

New

Depth:

130 mm

Heat Dissipation:

6-10 W at 60 Hz

Weight:

1.59 kg

Range:

TeSys

Protective Treatment:

THIEC 60068-2-30

Rated Breaking Capacity:

1100 A at 440 V for power circuit conforming to IEC 60947

[Ie] Rated Operational Current:

125 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Compatibility Code:

LC1D

Connections - Terminals:

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - ca

Sustainable Offer Status:

Green Premium product

Range Of Product:

TeSys Deca

Climatic Withstand:

IACS E10 exposure to damp heat

Electrical Durability:

0.8 Mcycles 125 A AC-1 <= 440 V || 1.5 Mcycles 80 A AC-3 <= 440 V || 1.5 Mcycles 80 A AC-3e <= 440 V

Width:

85 mm

Eu Rohs Directive:

Compliant

Warranty:

18 months

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || shocks contactor open 8 Gn for 11 ms) || vibrations contactor closed 3 Gn, 5...300 Hz) || shocks contactor closed 10 Gn for 11 ms)

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 200 A gG at <= 690 V coordination type 1 for power circuit || 160 A gG at <= 690 V coordination type 2 for power circuit

Utilisation Category:

AC-3 || AC-3e || AC-4 || AC-1

Overvoltage Category:

III

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 125 A (at 60°C) for power circuit

Power Dissipation Per Pole:

5.1 W AC-3 || 12.5 W AC-1 || 5.1 W AC-3e

Rohs Exemption Information:

Yes

[Uc] Control Circuit Voltage:

480 V AC 60 Hz

Operating Altitude:

0...9842.52 ft (0...3000 m)

Control Circuit Voltage Limits:

0.85...1.1 Uc -40-55°C operational AC 60 Hz || 0.3...0.6 Uc -40-70°C drop-out AC 60 Hz || 1...1.1 Uc 55-70°C operational AC 60 Hz

Mercury Free:

Yes

Mounting Support:

plate || rail

Toxic Heavy Metal Free:

Yes

Contactor Application:

resistive load || motor control

Pole Contact Composition:

3 NO

Operating Time:

20...35 ms closing || 6...20 ms opening

Tightening Torque:

control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector flat Ø 6 to Ø 8 mm || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Environmental Disclosure:

ENVPEP110205EN

Coil Technology:

without built-in suppressor module

[Ue] Rated Operational Voltage:

power circuit <= 300 V DC 25...400 Hz || power circuit <= 690 V AC

Net Weight:

1.59 kg

Insulation Resistance:

> 10 MOhm for Signaling circuit

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL

Flame Retardance:

V1 conforming to UL 94

Pvc Free:

Yes

Maximum Horse Power Rating:

7.5 hp at 120 V AC 50/60 Hz for 1 phase motors || 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 30 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 30 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 60 hp at 460/480 V AC 50/60 Hz for 3 phas

[Icw] Rated Short-Time Withstand Current:

640 A 40°C - 10 s for power circuit || 990 A 40°C - 1 s for power circuit || 135 A 40°C - 10 min for power circuit || 320 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms

Standards:

EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 60947-4-1 || IEC 60335-2-40:Annex JJ || UL 60335-2-40:Annex JJ || IEC 60335-1:Clause 30.2

Control Circuit Type:

AC 60 Hz

Mechanical Durability:

10 Mcycles

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Height:

127 mm

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
