Schneider Electric LC1G2254KUEN Contactor, high power, TeSys Giga, standard version, 4 pole/NO, AC-1 <=440V 330A, 100-250VAC/DC coil
Schneider Electric
$1,500.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1G2254KUEN Contactor, high power, TeSys Giga, standard version, 4 pole/NO, AC-1 <=440V 330A, 100-250VAC/DC coil

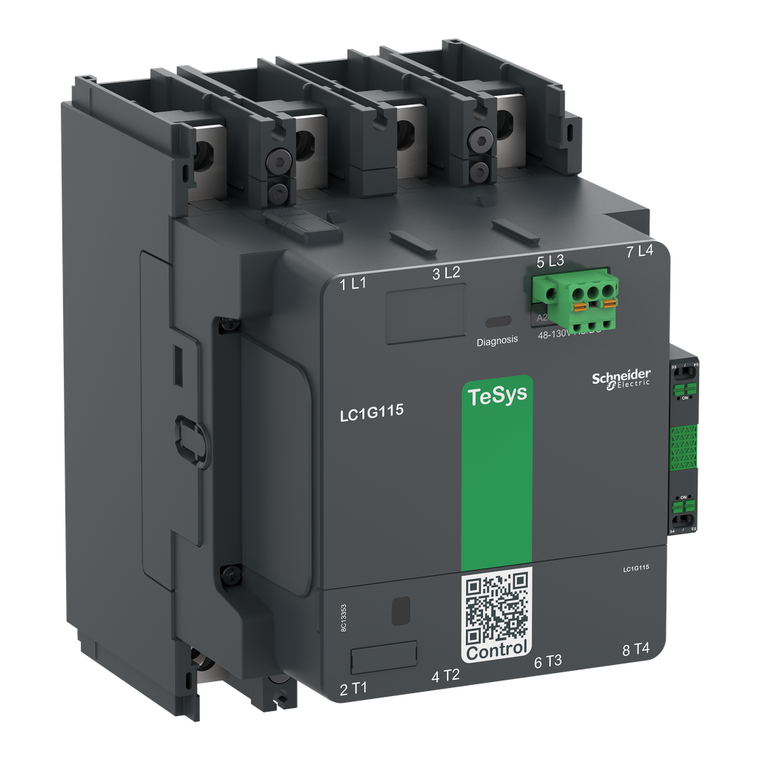

TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 330A @440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 255mm x 143mm x 175mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
- Halogen Content Performance:
- Halogen free plastic parts product
- Country of Origin:
- China
- Inrush Power In Va:
- 540-540 VA
- Connection Pitch:
- 35 mm
- Inrush Power In W:
- 380 W
- Mercury Free:
- Yes
- Control Circuit Voltage Limits:
- operational: 0.8 Uc Min...1.1 Uc Max (at <60°C) || drop-out: 0.1 Uc Max...0.45 Uc Min (at <60°C)
- Weight:
- 4.4 kg
- Range:
- TeSys
- Mounting Support:
- plate
- Product Certifications:
- CB Scheme || CCC || cULus || EAC || CE || UKCA || EU-RO-MR by DNV-GL
- Mechanical Durability:
- 8 Mcycles
- Irms Rated Making Capacity:
- 2720 A at 440 V
- Net Weight:
- 4.4 kg
- Mechanical Robustness:
- vibrations 5-300 Hz 2 gn contactor open || vibrations 5-300 Hz 4 gn contactor closed || shocks 10 gn 11 ms contactor open || shocks 15 gn 11 ms contactor closed
- [Ue] Rated Operational Voltage:
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Tightening Torque:
- 18 N.m
- Hold-In Power Consumption In W:
- 7.8-7.8 W
- Eu Rohs Directive:
- Compliant with Exemptions
- Pole Contact Composition:
- 4 NO
- Maximum Operating Rate:
- 600 cyc/h AC-3 || 600 cyc/h AC-3e || 300 cyc/h AC-1
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Poles Description:
- 4P
- Width:
- 143 mm
- Average Impedance:
- 0.00015 Ohm
- Standards:
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1 || JIS C8201-5-1 || UL 60335-1 || UL 60335-2-40:Annex JJ
- Utilisation Category:
- AC-3 || AC-3e || AC-1 || AC-5a || AC-5b || AC-6a || AC-6b || DC-1 || DC-3 || DC-5
- [Uc] Control Circuit Voltage:
- 100...250 V AC 50/60 Hz || 100...250 V DC
- Contactor Application:
- power switching
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV
- Circularity Profile:
- ENVEOLI2105013
- Power Dissipation Per Pole:
- 20 W AC-1 - Ith 330 A || 8 W AC-3 - Ith 225 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For m
- Product Or Component Type:
- contactor
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- [Ith] Conventional Free Air Thermal Current:
- 330 A (at 40°C)
- China Rohs Regulation:
- X
- Overvoltage Category:
- III
- [Icw] Rated Short-Time Withstand Current:
- 1.8 kA - 10 s || 1.0 kA - 30 s || 0.85 kA - 1 min || 0.56 kA - 3 min || 0.44 kA - 10 min
- Ip Degree Of Protection:
- IP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106
- Depth:
- 193 mm
- Permissible Ambient Air Temperature Around The Device:
- -40-70°C at Uc
- Device Short Name:
- LC1G
- Rated Breaking Capacity:
- 2050 A at 440 V
- Ambient Air Temperature For Operation:
- -25-60°C
- Sustainable Offer Status:
- Green Premium product
