Schneider Electric LC2D40A3FE7 TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 115 V AC coil
Schneider Electric
$667.08
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

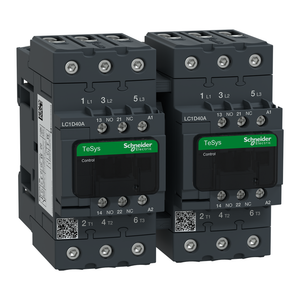

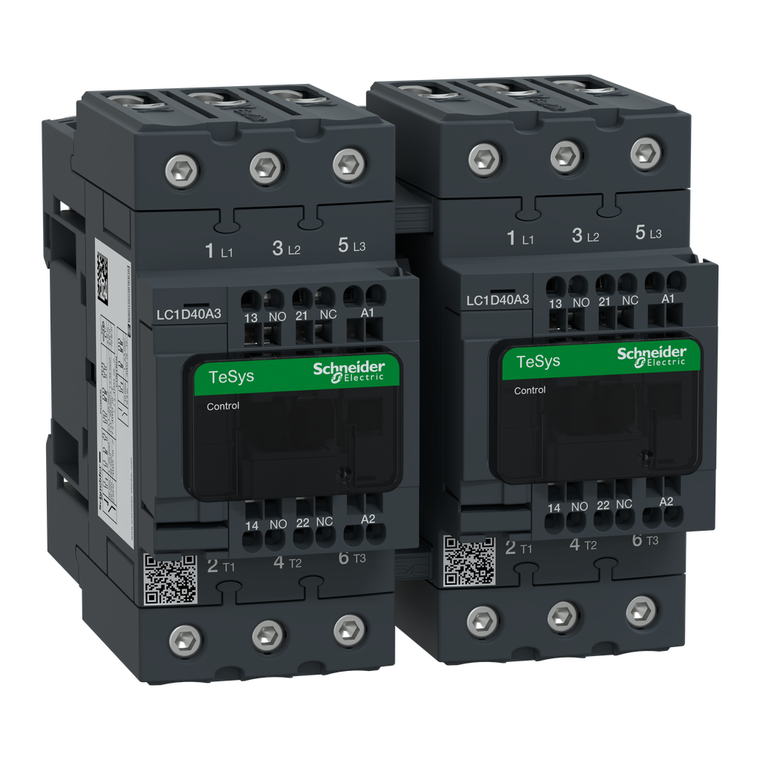

Schneider Electric LC2D40A3FE7 TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 115 V AC coil
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). It provides 115V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Reach Free Of Svhc:
- Yes
- Poles Description:
- 3P
- Width:
- 119 mm
- Control Circuit Voltage Limits:
- 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
- Circularity Profile:
- ENVEOLI1503009EN
- Hold-In Power Consumption In Va:
- 13-13 VA 60 Hz cos phi 0.3 (at 20°C) || 15-15 VA 50 Hz cos phi 0.3 (at 20°C)
- Operating Time:
- 4...19 ms opening || 12...26 ms closing
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Device Short Name:
- LC2D
- Product Certifications:
- UL || CSA || RINA || GOST || CCC || DNV || LROS (Lloyds register of shipping) || GL || BV || UKCA
- Mechanical Durability:
- 6 Mcycles
- Pvc Free:
- Yes
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Minimum Switching Current:
- 5 mA for Signaling circuit
- Inrush Power In Va:
- 140-140 VA 60 Hz cos phi 0.75 (at 20°C) || 160-160 VA 50 Hz cos phi 0.75 (at 20°C)
- Protective Cover:
- with
- Flame Retardance:
- V1 conforming to UL 94
- Power Dissipation Per Pole:
- 2.4 W AC-3 || 5.4 W AC-1 || 2.4 W AC-3e
- Warranty:
- 18 months
- Interlocking Type:
- mechanical
- [Ie] Rated Operational Current:
- 40 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 60 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 40 A (at <60°C) at <= 440 V AC AC-3e for power circuit
- Depth:
- 120 mm
- Height:
- 122 mm
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Motor Power Kw:
- 11 kW at 220...230 V AC 50-60 Hz || 18.5 kW at 380...400 V AC 50-60 Hz || 22 kW at 415 V AC 50-60 Hz || 22 kW at 440 V AC 50-60 Hz || 22 kW at 500 V AC 50-60 Hz || 30 kW at 660...690 V AC 50-60 Hz
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 60 A (at 60°C) for power circuit
- Overvoltage Category:
- III
- Heat Dissipation:
- 4-5 W 50/60 Hz
- Electrical Durability:
- 1.5 Mcycles 40 A AC-3 <= 440 V || 1.4 Mcycles 60 A AC-1 <= 440 V || 1.5 Mcycles 40 A AC-3e <= 440 V
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Weight:
- 1.87 kg
- Tightening Torque:
- power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw cl
- Maximum Horse Power Rating:
- 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 230/240 V AC 60 Hz for 3 phase motors || 30 hp at 575/600 V AC 60 Hz for 3 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phase motors || 3 hp at 115 V AC 60 Hz for 1 phase motors || 30 hp
- Ambient Air Temperature For Storage:
- -60-80°C
- Ambient Air Temperature For Operation:
- -40-60°C || 60-70°C with derating
- Connections - Terminals:
- power circuit EverLink BTR screw connectors 1 1-35 mm²flexible without cable end || power circuit EverLink BTR screw connectors 2 1-25 mm²flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm²flexible with cable end |
- Mercury Free:
- Yes
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Presentation:
- preassembled with reversing power busbar
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
- Rohs Exemption Information:
- Yes
- Coil Technology:
- without built-in suppressor module
- Standards:
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
- Average Impedance:
- 1.5 mOhm - Ith 60 A 50 Hz for power circuit
