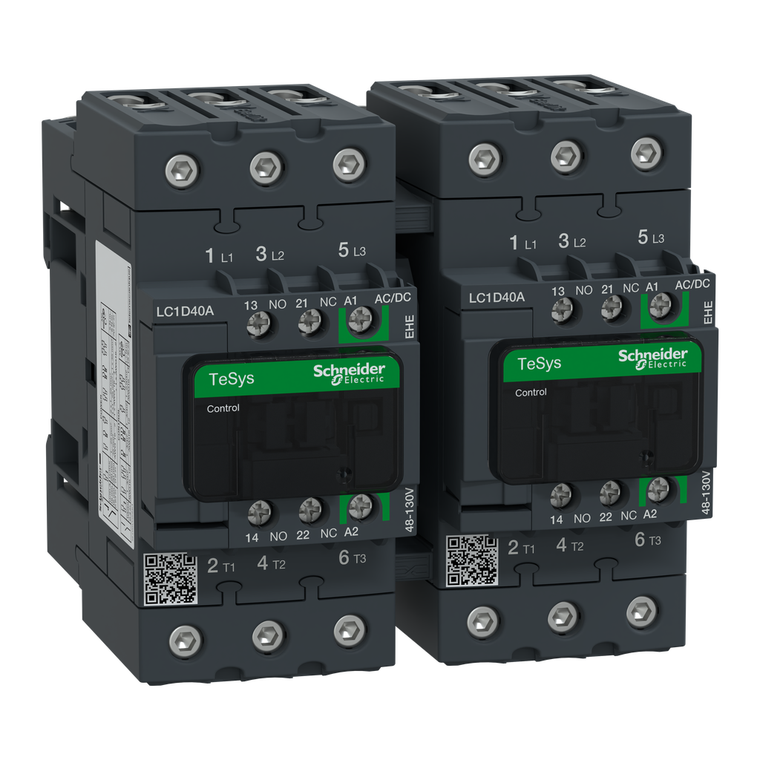

Schneider Electric LC2D40AEHE TeSys Deca reversing contactor - 3P - <= 440 V - 40 A AC-3 - 48...130 V AC/DC coil
LC2D40AEHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 40A AC-3 18.5kW@400V, it includes a 48-130V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D40AEHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 18.5kW@400V. It includes a 48-130V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 119mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 48-130V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 40A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Hold-In Power Consumption In Va:
- 1.4-1.4 VA 20°C) 50/60 Hz
- Device Short Name:
- LC2D
- Product Name:
- Tesys Deca green || TeSys Deca
- Signaling Circuit Frequency:
- 25...400 Hz
- Connections - Terminals:
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit scr
- Contactor Application:
- motor control || resistive load
- Inrush Power In W:
- 19-19 W 20°C
- Weight:
- 2.154 kg
- Circularity Profile:
- ENVEOLI1607010EN
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Width:
- 119 mm
- Flame Retardance:
- V1 conforming to UL 94
- Coil Technology:
- built-in bidirectional peak limiting
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Standards:
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Protective Cover:
- with
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
- Utilisation Category:
- AC-1 || AC-3 || AC-3e
- Ambient Air Temperature For Operation:
- -40-60°C || 60-70°C with derating
- Sustainable Offer Status:
- Green Premium product
- Range:
- TeSys || TeSys Deca
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
- Environmental Disclosure:
- ENVPEP1607010EN
- Heat Dissipation:
- 0.9-0.9 W 50/60 Hz
- Device Presentation:
- preassembled with reversing power busbar
- Tightening Torque:
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connecto
- Climatic Withstand:
- IACS E10 || IEC 60947-1 Annex Q category D
- [Ue] Rated Operational Voltage:
- power circuit 690 V AC 25...400 Hz
- Pole Contact Composition:
- 3 NO
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Net Weight:
- 2.154 kg
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Halogen Content Performance:
- Halogen free plastic parts & cables product
- Product Certifications:
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Mounting Support:
- rail || plate
- Pollution Degree:
- 3
- [Ie] Rated Operational Current:
- 60 A (at <60°C) at <= 440 V AC-1 for power circuit || 40 A (at <60°C) at <= 440 V AC-3 for power circuit || 40 A (at <60°C) at <= 440 V AC-3e for power circuit
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Maximum Horse Power Rating:
- 3 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phase motors || 10 hp at 230/240 V AC 60 Hz for 3 phase motors || 30 hp at 460/480 V AC 60 Hz for 3 phase motors || 30 hp
- Mechanical Durability:
- 6 Mcycles
- Average Impedance:
- 1.5 mOhm - Ith 60 A 50 Hz for power circuit
- Protective Treatment:
- TH IEC 60068-2-30
- [Icw] Rated Short-Time Withstand Current:
- 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms for Signaling circuit || 320 A 40°C - 10 s for power circuit || 720 A 40°C - 1 s for power circuit || 72 A 40°C - 10 min for power circuit || 165 A 40°C - 1 m
- Rohs Exemption Information:
- Yes
