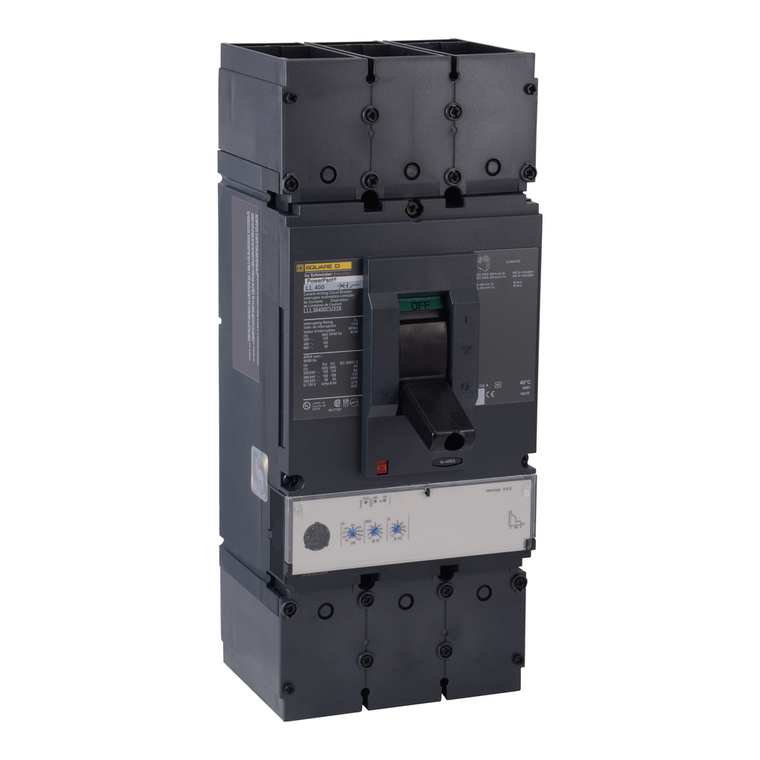

Schneider Electric LDL36600U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric LDL36600U33X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LDL36600U33X
|
UPC:
785901765868
Availability:
Contact us to confirm availability and lead times.
$7,673.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity Code:
D
Ambient Air Temperature For Storage:
-50-85 °C
Width:
140 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mounting Support:
lug
Range:
PowerPact
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Eu Rohs Directive:
Compliant with Exemptions
Net Weight:
6.2 kg
Pvc Free:
Yes
Poles Description:
3P
Continuous Current Rating:
0.8
Terminal Identifier:
AL600LS52K3
Color:
Black
Wire Stripping Length:
31 mm || 61 mm
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Product Or Component Type:
circuit breaker
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Sustainable Offer Status:
Green Premium product
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Circularity Profile:
ENVEOLI2206029EN
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Mounting Mode:
unit mount lug)
Device Application:
distribution
Ip Degree Of Protection:
front cover IP40
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-2-70 °C
Line Rated Current:
600-600 A
Product Certifications:
UL || CSA || NOM
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Connection:
lugs, line || lugs, load
Communication Interface:
Modbus || Ethernet
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Control Type:
toggle
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Network Frequency:
50/60 Hz
Mercury Free:
Yes
Utilisation Category:
category A
Product Name:
PowerPact L
Suitability For Isolation:
yes IEC 60947-2
Circuit Breaker Application:
HACR rated
Device Short Name:
L-Frame
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Height:
340 mm
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Depth:
110 mm
Trip Unit Name:
MicroLogic 3.3 S
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Warranty:
18 months
Environmental Disclosure:
ENVPEP2206029EN
Pollution Degree:
3 IEC 60947-1
Tightening Torque:
50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
