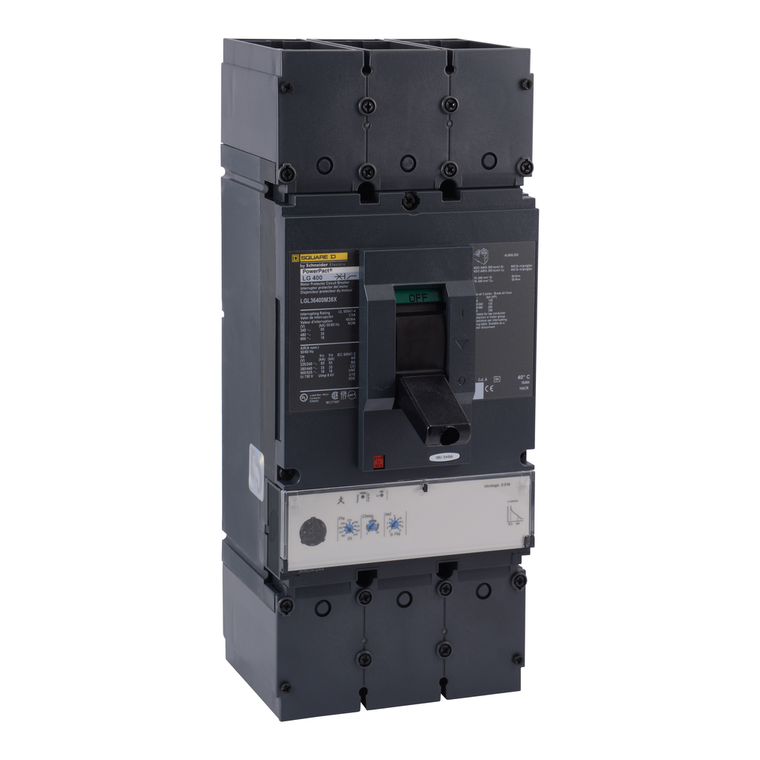

Schneider Electric LGL36600M38X Molded Case Circuit Breaker 600V 600A

Schneider Electric LGL36600M38X Molded Case Circuit Breaker 600V 600A

Schneider Electric
SKU:
LGL36600M38X
|
UPC:
7.85902E+11
$8,429.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT L-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. PowerPacT L-Frame motor circuit protectors are available with electronic trip units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the equivalent PowerPacT L circuit breaker. PowerPacT L protectors are available in 3 pole unit mount, I-Line, and plug in constructions. This PowerPacT L, 600A, 3 pole, MCP has an interrupting rating of 18kA at 600VAC. This protector provides MicroLogic with a 2.3M trip unit. This unit has lugs on both the line and load sides. This motor circuit protector has a continuous current rating of 80%. PowerPacT L motor circuit protectors comply to UL, CSA, and IEC standards.
Additional Information
Environmental Disclosure:
ENVPEP2206029EN
Mounting Mode:
unit mount lug)
Wire Stripping Length:
31 mm || 61 mm
Ambient Air Temperature For Operation:
-2-70 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Frequency:
50/60 Hz
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Local Signalling:
ready 1 LED green) || alarm 1 LED 95 % Ith red) || switched off (OFF) 1 trip indicator green)
Breaking Capacity Code:
G
Device Application:
distribution
Poles Description:
3P
Suitability For Isolation:
yes IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Product Or Component Type:
Motor Circuit Protector
Product Certifications:
UL || CSA || NOM
Width:
140 mm
Electrical Connection:
lugs, line || lugs, load
Circuit Breaker Application:
HACR rated
Device Short Name:
L-Frame
Sustainable Offer Status:
Green Premium product
Communication Interface:
Modbus || Ethernet
[Ith] Conventional Free Air Thermal Current:
312-520 A
Pollution Degree:
3 IEC 60947-1
Net Weight:
6.2 kg
Control Type:
toggle
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Line Rated Current:
600-600 A
Rohs Exemption Information:
Yes
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Height:
340 mm
Ambient Air Temperature For Storage:
-50-85 °C
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Pvc Free:
Yes
Trip Unit Technology:
electronic, standard, MicroLogic 2.3 M, LSoI
Warranty:
18 months
Trip Unit Name:
MicroLogic 2.3 M
Product Name:
PowerPact L
Depth:
110 mm
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Utilisation Category:
category A
Ip Degree Of Protection:
front cover IP40
Eu Rohs Directive:
Compliant with Exemptions
Color:
Black
Mounting Support:
lug
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Terminal Identifier:
AL600LS52K3
Circularity Profile:
ENVEOLI2206029EN
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
