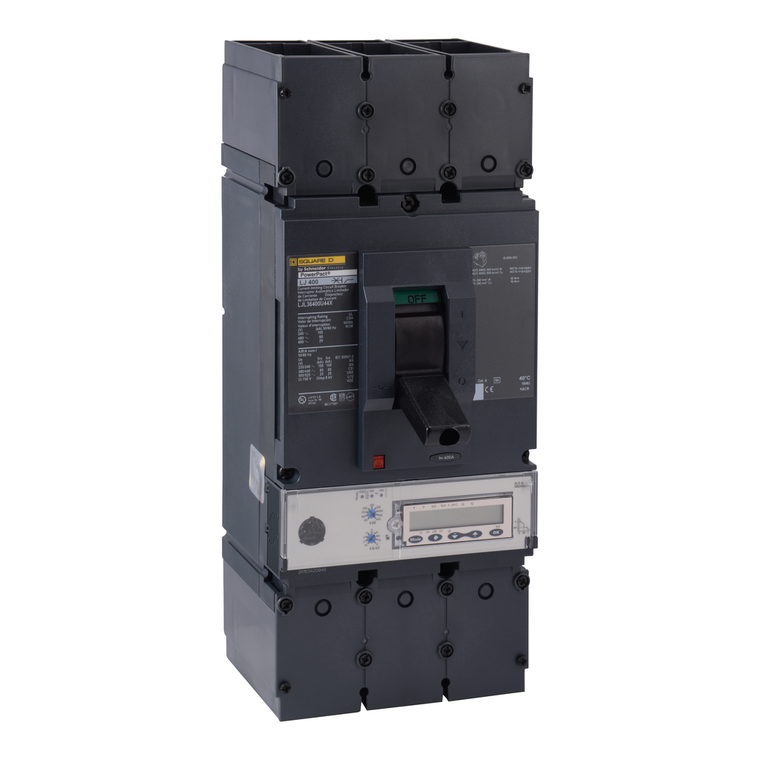

Schneider Electric LJL36400U44X Molded Case Circuit Breaker 600V 600A
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 6.3A trip unit and an LSIG function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Continuous Current Rating:
- 0.8
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Circularity Profile:
- ENVEOLI2206029EN
- Trip Unit Name:
- MicroLogic 6.3 A
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP2206029EN
- Ambient Air Temperature For Operation:
- -2-70 °C
- Device Short Name:
- L-Frame
- Protection Technology:
- current limiter
- Breaking Capacity Code:
- J
- Tightening Torque:
- 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
- Mounting Mode:
- unit mount lug)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Utilisation Category:
- category A
- Electrical Connection:
- lugs, line || lugs, load
- Net Weight:
- 6.2 kg
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Terminal Identifier:
- AL600LS52K3
- Range:
- PowerPact
- Pollution Degree:
- 3 IEC 60947-1
- Color:
- Black
- Mounting Support:
- lug
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 6.3 A, LSIG
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mercury Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- Poles Description:
- 3P
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Line Rated Current:
- 400-400 A
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- circuit breaker
- Ip Degree Of Protection:
- front cover IP40
- Product Name:
- PowerPact L
- Wire Stripping Length:
- 31 mm || 61 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Pvc Free:
- Yes
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Device Application:
- distribution
- Ambient Air Temperature For Storage:
- -50-85 °C
- Width:
- 140 mm
- Product Certifications:
- UL || CSA || NOM
- Depth:
- 110 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Awg Gauge:
- 2 x AWG 2/0...500 kcmil aluminium/copper
- Height:
- 340 mm
- Control Type:
- toggle
- Communication Interface:
- Modbus || Ethernet
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
