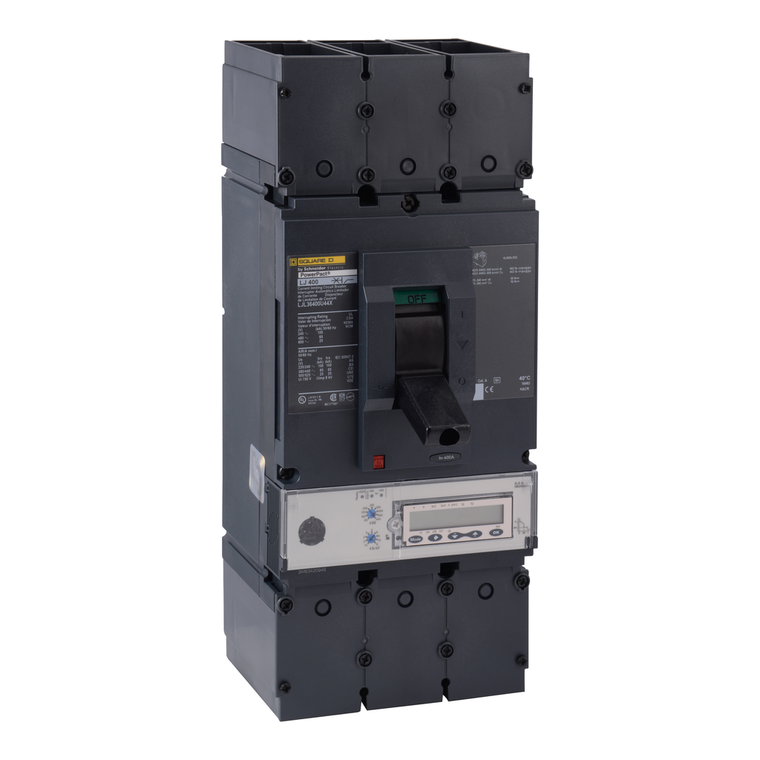

Schneider Electric LJL36600U44X Molded Case Circuit Breaker 480V 400A

(No reviews yet) Write a Review

Write a Review

Schneider Electric LJL36600U44X Molded Case Circuit Breaker 480V 400A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJL36600U44X

UPC:

3.60649E+12

MPN:

Condition:

New

Color:

Black

Local Signalling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Environmental Disclosure:

ENVPEP2206029EN

Trip Unit Technology:

electronic, ammeter, MicroLogic 6.3 A, LSIG

Width:

140 mm

Utilisation Category:

category A

Range:

PowerPact

Product Or Component Type:

circuit breaker

Pollution Degree:

3 IEC 60947-1

Device Short Name:

L-Frame

Rohs Exemption Information:

Yes

Product Certifications:

UL || CSA || NOM

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Mounting Support:

lug

Wire Stripping Length:

31 mm || 61 mm

Sustainable Offer Status:

Green Premium product

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Suitability For Isolation:

yes IEC 60947-2

Circularity Profile:

ENVEOLI2206029EN

Trip Unit Name:

MicroLogic 6.3 A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Current Rating:

0.8

Ambient Air Temperature For Operation:

-2-70 °C

Poles Description:

3P

Mercury Free:

Yes

Device Application:

distribution

Protection Technology:

current limiter

Awg Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Product Name:

PowerPact L

Eu Rohs Directive:

Compliant with Exemptions

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Control Type:

toggle

Mounting Mode:

unit mount lug)

Pvc Free:

Yes

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Net Weight:

6.2 kg

Tightening Torque:

50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)

Depth:

110 mm

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Ip Degree Of Protection:

front cover IP40

Line Rated Current:

600-600 A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Electrical Connection:

lugs, line || lugs, load

Breaking Capacity Code:

J

Height:

340 mm

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Network Frequency:

50/60 Hz

Circuit Breaker Application:

HACR rated

Terminal Identifier:

AL600LS52K3

Ambient Air Temperature For Storage:

-50-85 °C

Warranty:

18 months

Communication Interface:

Modbus || Ethernet

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2
