Schneider Electric

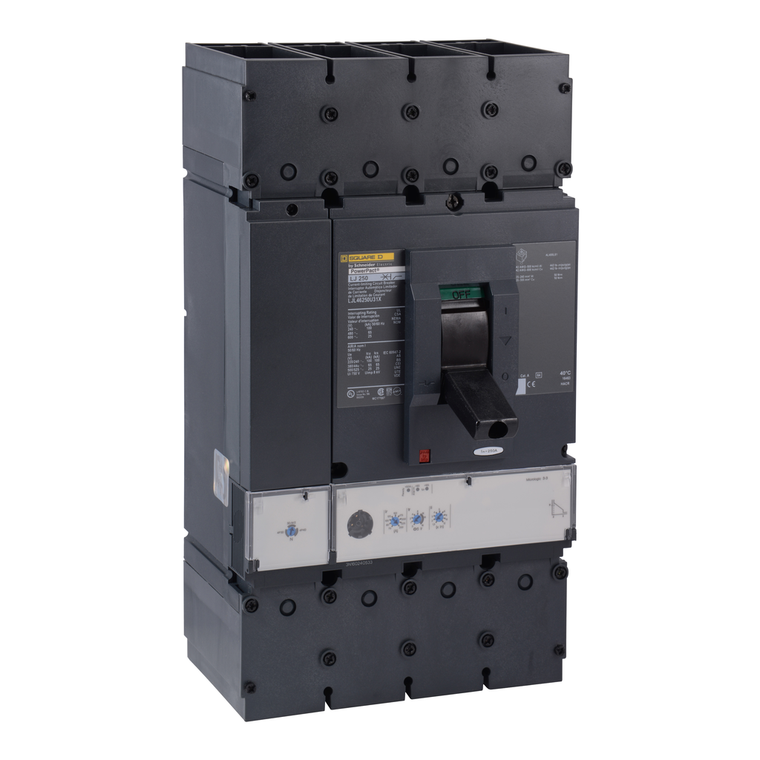

Schneider Electric LJL46400U31X Circuit breaker, PowerPacT L, 400A, 4 pole, 600VAC, 25kA, lugs, MicroLogic 3.3, 80%

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LJL46400U31X Circuit breaker, PowerPacT L, 400A, 4 pole, 600VAC, 25kA, lugs, MicroLogic 3.3, 80%

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJL46400U31X

UPC:

MPN:

LJL46400U31X

Condition:

New

Trip Unit Name:

MicroLogic 3.3

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Network Frequency:

50/60 Hz

Color:

Black

Length:

31 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Country of Origin:

United States

Device Application:

distribution

Utilisation Category:

category A

Continuous Current Rating:

0.8

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Breaking Capacity Code:

J

Control Type:

toggle

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Product Certifications:

UL || CSA || NOM

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP2206029EN

Product Or Component Type:

circuit breaker

Trip Unit Technology:

electronic, standard, MicroLogic 3.3, LI

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI2206029EN

Device Short Name:

L-Frame

Terminal Identifier:

AL600LS52K4

Suitability For Isolation:

yes IEC 60947-2

Net Weight:

6.2 kg

Pvc Free:

Yes

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Awg Gauge:

AWG 2/0...500 kcmil aluminium/copper

Wire Stripping Length:

31 mm

Height:

340 mm

Ambient Air Temperature For Operation:

-25-70°C

Warranty:

18 months

Weight:

6.2 kg

Communication Interface:

Modbus || Ethernet

Eu Rohs Directive:

Compliant with Exemptions

Poles Description:

4P

Mounting Support:

lug

Range:

PowerPact

Pollution Degree:

3 IEC 60947-1

Mercury Free:

Yes

Local Signaling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Protection Technology:

current limiter

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Mounting Mode:

unit mount lug)

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Depth:

110 mm

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Product Name:

PowerPact L

Width:

140 mm
