Schneider Electric LR3D332 TeSys Deca thermal overload relays - 23...32 A - class 10A

Schneider Electric LR3D332 TeSys Deca thermal overload relays - 23...32 A - class 10A

Schneider Electric
SKU:
LR3D332
$107.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

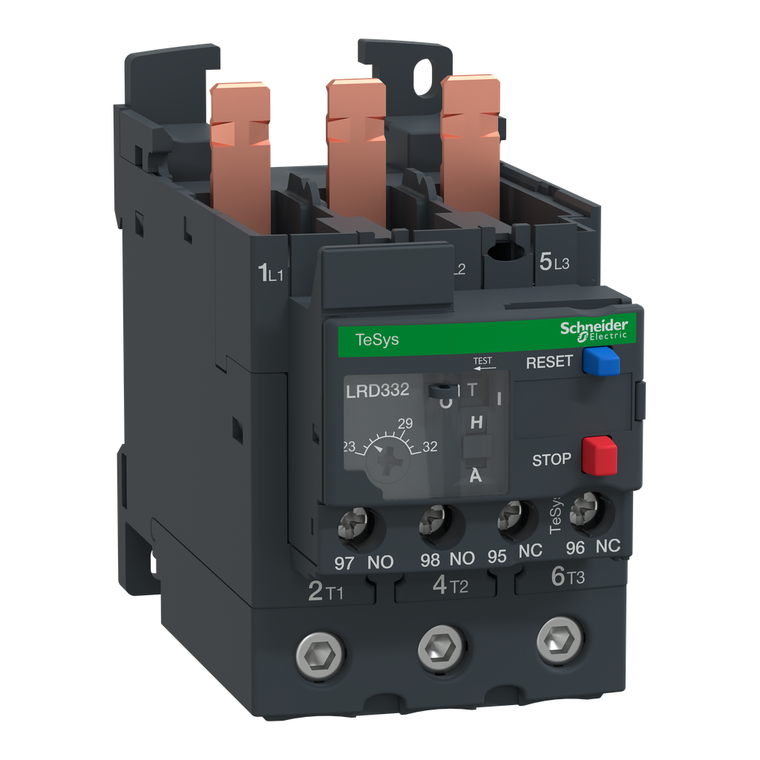

LR3D332 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 15kW@400V thanks to a thermal range 23-32A , a tripping class 10A, for use with unbalanced loads. LR3D332 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 23-32A and tripping class 10A, it protects unbalanced loads and motors 15kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D40A-D65A to form a compact starter. Light and compact, 55mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Additional Information
Ambient Air Temperature For Storage:
-60-70°C
Device Short Name:
LR3D
Product Certifications:
IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA
Flame Retardance:
V1 conforming to UL 94
Permissible Current:
0.95 A 380 V AC-15 Signaling circuit || 0.06 A 440 V DC-13 Signaling circuit
Climatic Withstand:
IACS E10
Network Frequency:
0...400 Hz
Country of Origin:
France
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
690 V AC 0...400 Hz power circuit IEC 60947-4-1
Thermal Protection Adjustment Range:
23-32 A
Weight:
0.375 kg
Standards:
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5
Temperature Compensation:
-20-60°C
Depth:
123 mm
Connections - Terminals:
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit
Net Weight:
0.375 kg
Ambient Air Temperature For Operation:
-20-60°C without derating IEC 60947-4-1
Network Type:
DC || AC
Dielectric Strength:
1.89 kV 50 Hz IEC 60947-1
Product Compatibility:
LC1D40A || LC1D50A || LC1D65A
Reach Free Of Svhc:
Yes
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Compliant
Warranty:
18 months
Circularity Profile:
ENVEOLI0804005_V1
[Uimp] Rated Impulse Withstand Voltage:
6 kV
Range:
TeSys || TeSys Deca
Mounting Support:
plate, with specific accessories || rail, with specific accessories || under contactor
[Ui] Rated Insulation Voltage:
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Associated Fuse Rating:
4 A gG for Signaling circuit || 4 A BS for Signaling circuit
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Thermal Overload Class:
class 10A IEC 60947-4-1
Mechanical Robustness:
shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
Relay Application:
motor protection
Sustainable Offer Status:
Green Premium product
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
[Ith] Conventional Free Air Thermal Current:
5 A Signaling circuit
Auxiliary Contact Composition:
1 NO + 1 NC
Phase Failure Sensitivity:
tripping current 130 % of Ir on two phase, the last one at 0
Tripping Threshold:
1.14 +/- 0.06 Ir IEC 60947-4-1
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Control Type:
Red push-button stop || Blue push-button reset
