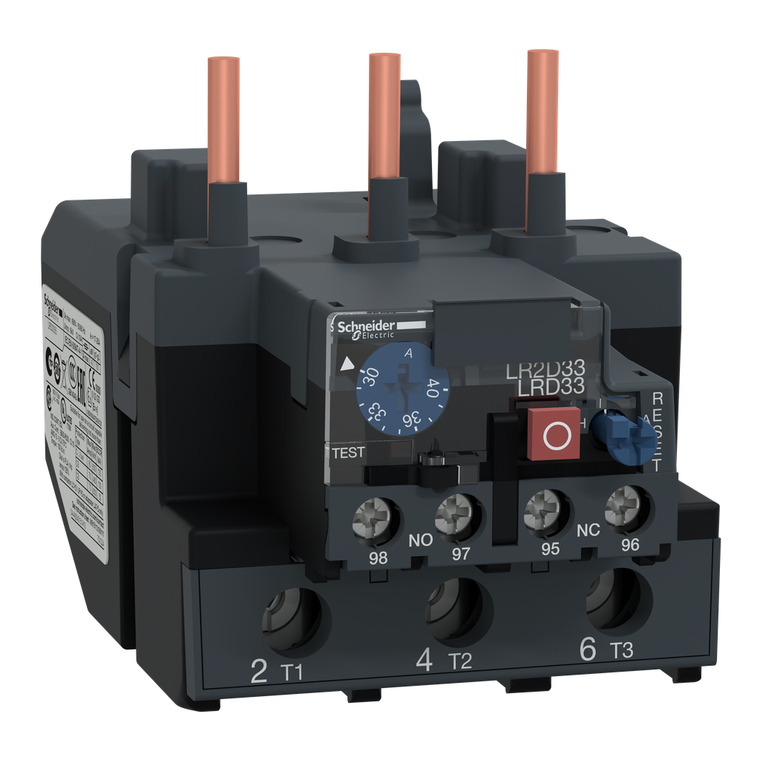

Schneider Electric LRD3355 TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LRD3355 TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LRD3355

UPC:

MPN:

LRD3355

Condition:

New

Product Or Component Type:

differential thermal overload relay

Dielectric Strength:

2.2 kV 50 Hz IEC 60947-1

Toxic Heavy Metal Free:

Yes

Net Weight:

0.51 kg

Flame Retardance:

V1 conforming to UL 94

Associated Fuse Rating:

4 A gG for Signaling circuit || 4 A BS for Signaling circuit

Thermal Overload Class:

class 10A IEC 60947-4-1

Rohs Exemption Information:

Yes

Auxiliary Contact Composition:

1 NO + 1 NC

Depth:

115 mm

Tripping Threshold:

1.14 +/- 0.06 Ir IEC 60947-4-1

Ambient Air Temperature For Operation:

-20-60°C without derating IEC 60947-4-1

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Thermal Protection Adjustment Range:

30-40 A

Product Certifications:

IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA

Mechanical Robustness:

vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Device Short Name:

LRD

Environmental Disclosure:

ENVPEP110101EN

Eu Rohs Directive:

Compliant

Network Type:

DC || AC

Connections - Terminals:

power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw

Product Name:

TeSys LRD || TeSys Deca

Range:

TeSys

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Circularity Profile:

ENVEOLI1101001

[Ith] Conventional Free Air Thermal Current:

5 A Signaling circuit

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495

Phase Failure Sensitivity:

tripping current 130 % of Ir on two phase, the last one at 0

Temperature Compensation:

-20-60°C

[Ui] Rated Insulation Voltage:

power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Warranty:

18 months

Ambient Air Temperature For Storage:

-60-70°C

[Ue] Rated Operational Voltage:

1000 V AC 0...400 Hz power circuit IEC 60947-4-1

Reach Free Of Svhc:

Yes

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Mounting Support:

plate, with specific accessories || rail, with specific accessories || under contactor

Country of Origin:

France

Relay Application:

motor protection

Product Compatibility:

LC1D80 || LC1D95

Climatic Withstand:

IACS E10

Network Frequency:

0...400 Hz

Permissible Current:

0.72 A 500 V AC-15 Signaling circuit || 0.06 A 440 V DC-13 Signaling circuit
