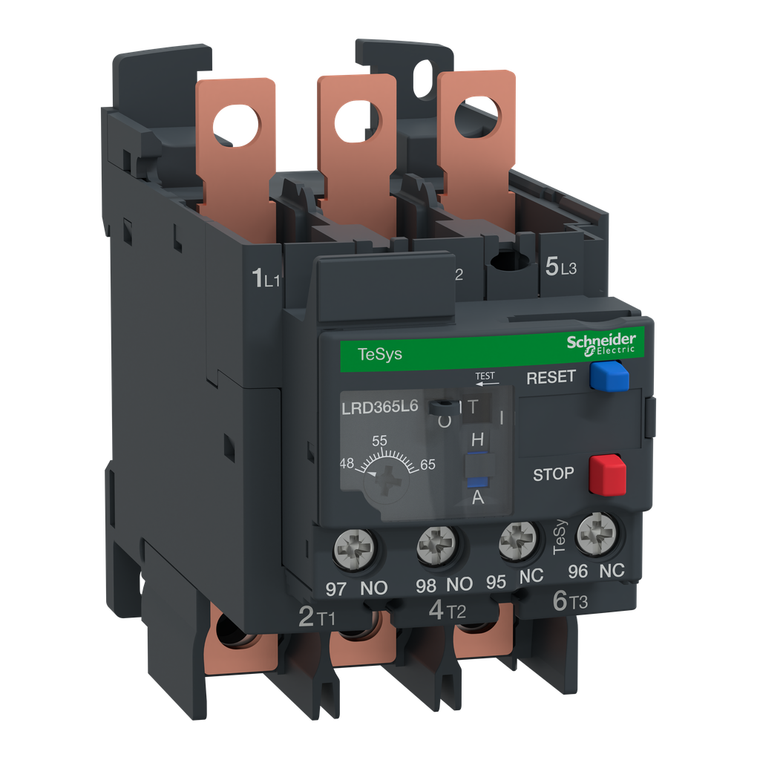

Schneider Electric LRD365L6 TeSys Deca thermal overload relays - 48...65 A - class 20

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LRD365L6 TeSys Deca thermal overload relays - 48...65 A - class 20

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LRD365L6

UPC:

MPN:

LRD365L6

Condition:

New

Eu Rohs Directive:

Compliant

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Device Short Name:

LRD

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Temperature Compensation:

-20-60°C

Control Type:

Red push-button stop || Blue push-button reset

Thermal Protection Adjustment Range:

48-65 A

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Ambient Air Temperature For Storage:

-60-70°C

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals || power circuit 6 N.m lugs-ring terminals

Mounting Support:

plate, with specific accessories || rail, with specific accessories || under contactor

Environmental Disclosure:

ENVPEP080405EN

Product Certifications:

IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA

Reach Regulation:

Free of Substances of Very High Concern above the threshold

[Ue] Rated Operational Voltage:

690 V AC 0...400 Hz power circuit IEC 60947-4-1

Weight:

0.375 kg

Product Compatibility:

LC1D50A || LC1D65A

Network Frequency:

0...400 Hz

Reach Free Of Svhc:

Yes

Net Weight:

0.375 kg

Depth:

123 mm

Sustainable Offer Status:

Green Premium product

Phase Failure Sensitivity:

tripping current 130 % of Ir on two phase, the last one at 0

Dielectric Strength:

1.89 kV 50 Hz IEC 60947-1

Product Or Component Type:

differential thermal overload relay

Warranty:

18 months

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Associated Fuse Rating:

4 A gG for Signaling circuit || 4 A BS for Signaling circuit

Flame Retardance:

V1 conforming to UL 94

Country of Origin:

France

Thermal Overload Class:

class 20 IEC 60947-4-1

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1

Connection Pitch:

17.5 mm

Product Name:

TeSys LRD || TeSys Deca

Toxic Heavy Metal Free:

Yes

Circularity Profile:

ENVEOLI0804005_V1

Permissible Current:

3 A 120 V AC-15 Signaling circuit || 0.22 A 125 V DC-13 Signaling circuit

Connections - Terminals:

control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit

Tripping Threshold:

1.14 +/- 0.06 Ir IEC 60947-4-1

Network Type:

DC || AC

Auxiliary Contact Composition:

1 NO + 1 NC

Width:

55 mm

[Ith] Conventional Free Air Thermal Current:

5 A Signaling circuit

Relay Application:

motor protection

Range:

TeSys || TeSys Deca

Mechanical Robustness:

shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
