Schneider Electric

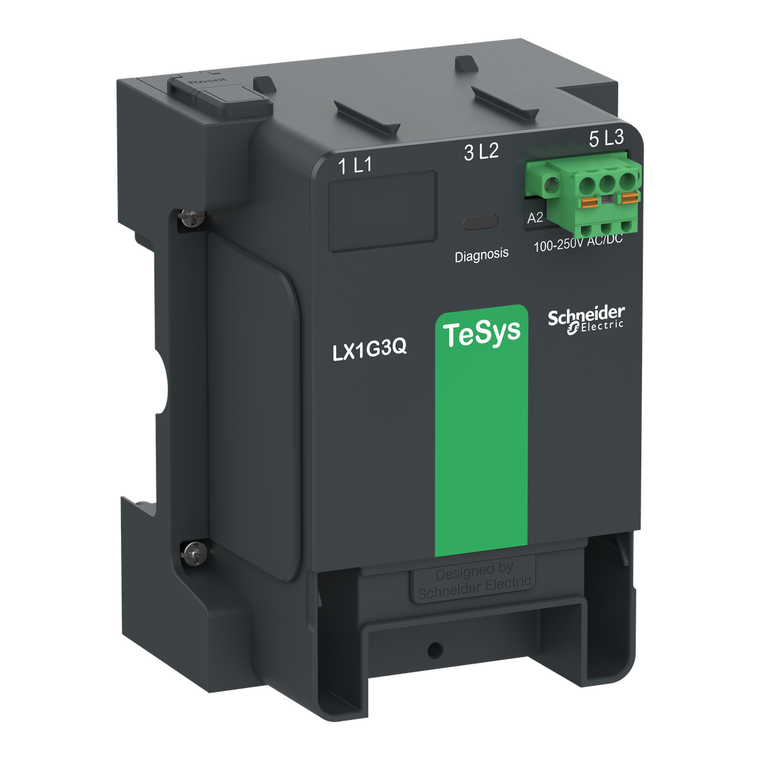

Schneider Electric LX1G3QKUEN Control module,TeSys Giga,100-250V AC/DC,for LC1G115-225/3P standard version

(No reviews yet) Write a Review
SKU:
LX1G3QKUEN
MPN:
LX1G3QKUEN
Condition:
New
Maximum Operating Rate:
600 cyc/mn 60°C
Hold-In Power Consumption In Va:
9.4-9.4 VA 240 V AC, 50 Hz
Standards:
EN/IEC 60947-4-1 || UL 60947-4-1A || CSA C22.2 No 60947-4-1
Electromagnetic Compatibility:
EMC immunity conforming to IEC 60947-4-1 || emission tests criteria A conforming to IEC 60947-4-1 || immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 || voltage dips and interruptions immunity tes
Operating Altitude:
9842.52 ft (3000 m) without derating || 5000 m with derating factor
Country of Origin:
China
Ip Degree Of Protection:
IP20 IEC 60529
Quantity Per Set:
1
Product Compatibility:
LC1G115...225
Depth:
94.0 mm
Mechanical Durability:
5 Mcycles
Circularity Profile:
ENVEOLI2105013
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Compatibility:
TeSys G LX1G contactor coil
Halogen Content Performance:
Halogen free plastic parts product
[Uc] Control Circuit Voltage:
100...250 V AC/DC 50/60 Hz
Pollution Degree:
3 IEC 60947-1
Product Or Component Type:
contactor coil
Range:
TeSys
Ambient Air Temperature For Storage:
-60-80°C
Eu Rohs Directive:
Compliant with Exemptions
Poles Description:
3P
Hold-In Power Consumption In W:
5.2-5.2 W DC
Connections - Terminals:
control circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12 || control circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14 || control circuit push-in termination 2
Mercury Free:
Yes
China Rohs Regulation:
X
Control Circuit Voltage Limits:
operational 0.8...1.1 Uc 60°C) || drop-out 0...0.45 Uc 60°C)
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For m
Environmental Disclosure:
ENVPEP2105013
Operating Time:
20...35 ms opening || 40...55 ms closing
Ambient Air Temperature For Operation:
-25-60°C
Inrush Power In Va:
485-485 VA 240 V AC, 50 Hz
Coil Technology:
built-in bidirectional peak limiting
Permissible Ambient Air Temperature Around The Device:
-40-70°C at Uc
Inrush Power In W:
365.0 W DC
Sustainable Offer Status:
Green Premium product
Device Short Name:
LX1G
$235.00

Description

It is a 100-250V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
