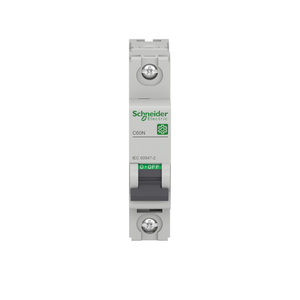

Schneider Electric M9F11102 Multi9 C60N 1P C 2A 10Ka 240V Mcb
Schneider Electric
$96.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 2A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Net Weight:
- 0.12 kg
- Product Certifications:
- EAC || KC || CCC
- Mounting Mode:
- clip-on
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- Sustainable Offer Status:
- Green Premium product
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Mounting Support:
- DIN rail
- Curve Code:
- C
- Halogen Content Performance:
- Halogen free product
- Pollution Degree:
- 3 EN/IEC 60947-2
- Number Of Protected Poles:
- 1
- Depth:
- 72 mm
- Device Short Name:
- C60N
- Height:
- 81 mm
- Tightening Torque:
- 2-2 N.m top or bottom
- Contact Position Indicator:
- yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- 9 Mm Pitches:
- 2
- Ambient Air Temperature For Operation:
- -30-70 °C
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
- Local Signalling:
- ON/OFF indication
- Limitation Class:
- 3
- Standards:
- EN/IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Device Application:
- distribution
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Environmental Disclosure:
- ENVPEP1304004EN
- Mechanical Durability:
- 20000 cycles
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Network Type:
- DC || AC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Overvoltage Category:
- IV
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Provision For Padlocking:
- padlockable
- Product Name:
- Multi9 C60
- Control Type:
- toggle
- Width:
- 18 mm
- Circularity Profile:
- N/A
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
- Rohs Exemption Information:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Range:
- Multi9
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Tropicalisation:
- 2 IEC 60068-1
- Line Rated Current:
- 2 A 50 °C EN/IEC 60947-2
- Heat Dissipation:
- 2.6-2.6 W 240 V - 2 A
- Ambient Air Temperature For Storage:
- -40-80 °C
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Utilisation Category:
- category A EN/IEC 60947-2
- Earth-Leakage Protection:
- separate block
- Poles Description:
- 1P
- Mercury Free:
- Yes
- Breaking Capacity:
- 15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Electrical Durability:
- 10000 cycles
- Color:
- Gray
- Product Or Component Type:
- miniature circuit-breaker
- Relative Humidity:
- 95-95 % 55-55 °C
- Network Frequency:
- 50/60 Hz
