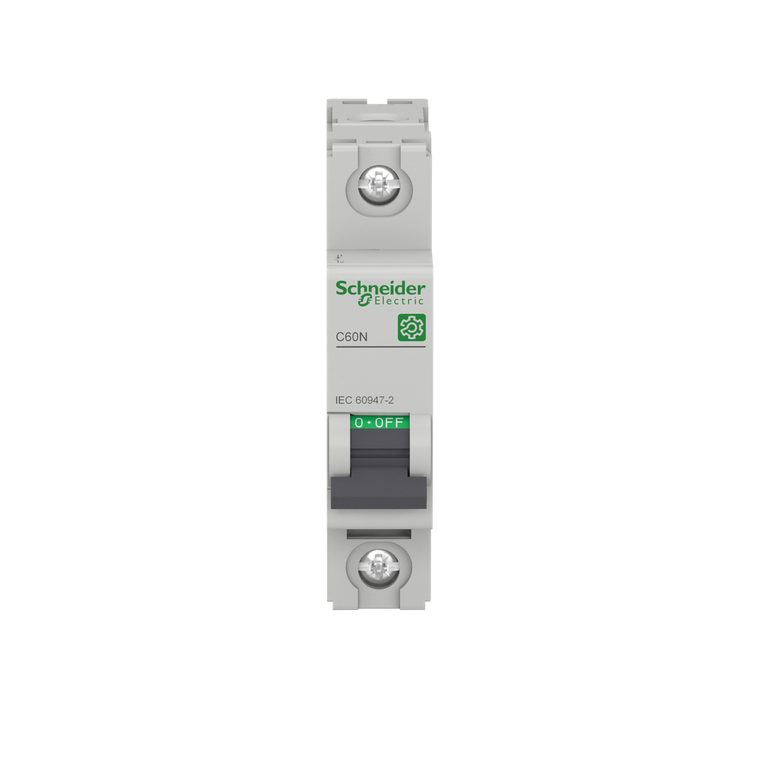

Schneider Electric M9F11132 Multi9 C60N 1P C 32A 10Ka 240V Mcb

(No reviews yet) Write a Review
SKU:
M9F11132
UPC:
3.60648E+12
Condition:
New
Device Short Name:
C60N
Limitation Class:
3
Electrical Durability:
10000 cycles
Standards:
EN/IEC 60947-2
Height:
81 mm
Device Application:
distribution
Product Name:
Multi9 C60
Local Signalling:
ON/OFF indication
Rohs Exemption Information:
Yes
Mechanical Durability:
20000 cycles
Breaking Capacity:
15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
Ambient Air Temperature For Operation:
-30-70 °C
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Trip Unit Technology:
thermal-magnetic
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
Number Of Protected Poles:
1
Wire Stripping Length:
14 mm for top or bottom connection
Ambient Air Temperature For Storage:
-40-80 °C
Control Type:
toggle
Overvoltage Category:
IV
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Suitability For Isolation:
yes EN/IEC 60947-2
Poles Description:
1P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Connections - Terminals:
tunnel type terminal top or bottom) 1.5-35 mm² - rigid || tunnel type terminal top or bottom) 1.5-35 mm² - flexible || tunnel type terminal top or bottom) 1.5-35 mm² - flexible with ferrule
Color:
Gray
Eu Rohs Directive:
Compliant with Exemptions
Heat Dissipation:
3.5-3.5 W 240 V - 32 A
Width:
18 mm
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC
9 Mm Pitches:
2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Earth-Leakage Protection:
separate block
Provision For Padlocking:
padlockable
Range:
Multi9
Contact Position Indicator:
yes
Product Certifications:
EAC || KC || CCC
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Tropicalisation:
2 IEC 60068-1
Environmental Disclosure:
ENVPEP1304004EN
Relative Humidity:
95-95 % 55-55 °C
Network Frequency:
50/60 Hz
Mounting Support:
DIN rail
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Network Type:
DC || AC
Sustainable Offer Status:
Green Premium product
Depth:
72 mm
Tightening Torque:
3.5-3.5 N.m top or bottom
Halogen Content Performance:
Halogen free product
Mounting Mode:
clip-on
Pollution Degree:
3 EN/IEC 60947-2
Curve Code:
C
Product Or Component Type:
miniature circuit-breaker
Utilisation Category:
category A EN/IEC 60947-2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Line Rated Current:
32 A 50 °C EN/IEC 60947-2
Net Weight:
0.12 kg
  • Schneider Electric M9F11132 Multi9 C60N 1P C 32A 10Ka 240V Mcb
  • Schneider Electric M9F11132 Multi9 C60N 1P C 32A 10Ka 240V Mcb
$96.00

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 32A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
