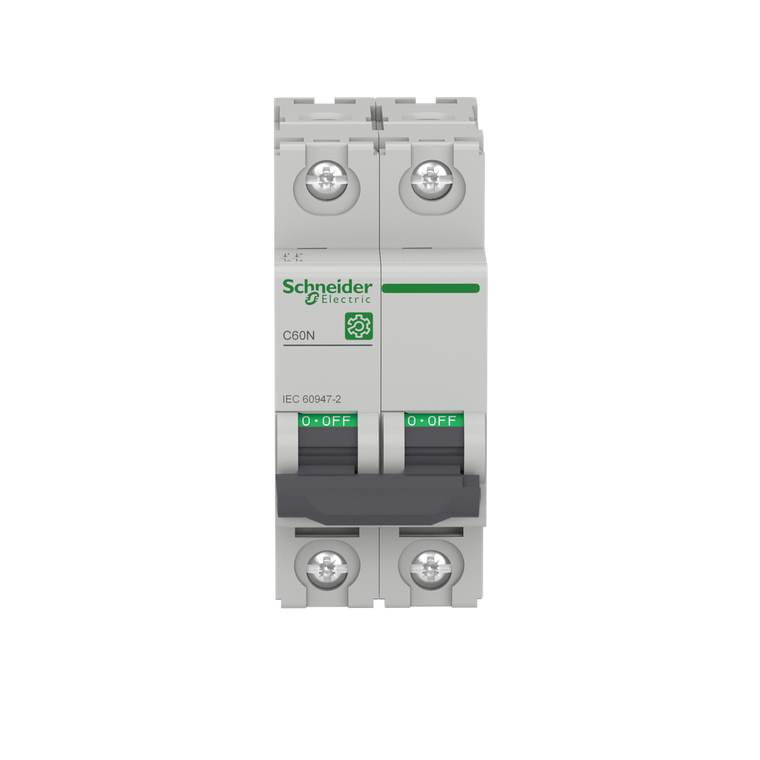

Schneider Electric M9F11206 Multi9 C60N 2P C 6A 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9F11206
UPC:
3606480576232
Condition:
New
Network Frequency:
50/60 Hz
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
Pollution Degree:
3 EN/IEC 60947-2
Breaking Capacity:
20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Tropicalisation:
2 IEC 60068-1
Electrical Durability:
10000 cycles
Width:
36 mm
9 Mm Pitches:
4
Ambient Air Temperature For Operation:
-30-70 °C
Mercury Free:
Yes
Overvoltage Category:
IV
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Color:
Gray
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
Number Of Protected Poles:
2
Mechanical Durability:
20000 cycles
Device Short Name:
C60N
Control Type:
toggle
Network Type:
AC || DC
Environmental Disclosure:
ENVPEP1304004EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage:
-40-80 °C
Limitation Class:
3
Circularity Profile:
N/A
Depth:
72 mm
Suitability For Isolation:
yes EN/IEC 60947-2
Utilisation Category:
category A EN/IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Standards:
EN/IEC 60947-2
Mounting Mode:
clip-on
Tightening Torque:
2-2 N.m top or bottom
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Device Application:
distribution
Provision For Padlocking:
padlockable
Line Rated Current:
6 A 50 °C EN/IEC 60947-2
Local Signalling:
ON/OFF indication
Product Certifications:
EAC || KC || CCC
Contact Position Indicator:
yes
Rohs Exemption Information:
Yes
Halogen Content Performance:
Halogen free product
Curve Code:
C
Heat Dissipation:
5.4-5.4 W 415 V - 6 A
Product Or Component Type:
miniature circuit-breaker
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Technology:
thermal-magnetic
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Net Weight:
0.24 kg
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Mounting Support:
DIN rail
Height:
81 mm
Relative Humidity:
95-95 % 55-55 °C
Product Name:
Multi9 C60
Earth-Leakage Protection:
separate block
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Poles Description:
2P
Range:
Multi9
Wire Stripping Length:
14 mm for top or bottom connection
Sustainable Offer Status:
Green Premium product
Brochure:
View
Datasheet:
View
$207.00

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
