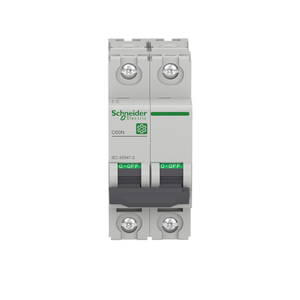

Schneider Electric M9F12206 Multi9 C60N 2P D 6A 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9F12206
UPC:
3606480576737
Condition:
New
Ambient Air Temperature For Operation:
-30-70 °C
Curve Code:
D
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Limitation Class:
3
Line Rated Current:
6 A 50 °C EN/IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Name:
Multi9 C60
Mercury Free:
Yes
Control Type:
toggle
Overvoltage Category:
IV
Circularity Profile:
N/A
Product Certifications:
EAC || KC || CCC
Depth:
72 mm
Mechanical Durability:
20000 cycles
Wire Stripping Length:
14 mm for top or bottom connection
Range:
Multi9
9 Mm Pitches:
4
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
miniature circuit-breaker
Heat Dissipation:
5.4-5.4 W 415 V - 6 A
Tightening Torque:
2-2 N.m top or bottom
Suitability For Isolation:
yes EN/IEC 60947-2
Device Application:
distribution
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
Height:
81 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Network Type:
DC || AC
Network Frequency:
50/60 Hz
Utilisation Category:
category A EN/IEC 60947-2
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Number Of Protected Poles:
2
Eu Rohs Directive:
Compliant with Exemptions
Width:
36 mm
Local Signalling:
ON/OFF indication
Contact Position Indicator:
yes
Relative Humidity:
95-95 % 55-55 °C
Device Short Name:
C60N
Ambient Air Temperature For Storage:
-40-80 °C
Mounting Mode:
clip-on
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
Rohs Exemption Information:
Yes
Color:
Gray
Halogen Content Performance:
Halogen free product
Electrical Durability:
10000 cycles
Standards:
EN/IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Earth-Leakage Protection:
separate block
Breaking Capacity:
20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Tropicalisation:
2 IEC 60068-1
Mounting Support:
DIN rail
Pollution Degree:
3 EN/IEC 60947-2
Poles Description:
2P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Provision For Padlocking:
padlockable
Net Weight:
0.24 kg
Environmental Disclosure:
ENVPEP1304004EN
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Brochure:
View
Datasheet:
View
$207.00

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 6A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
