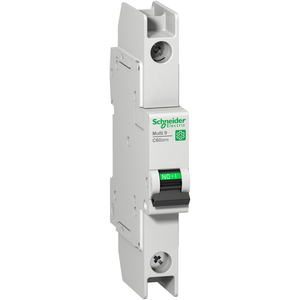

Schneider Electric M9F52108 Multi9 C60Bpr 1P C 8A 10Ka 277V Ul489

Schneider Electric M9F52108 Multi9 C60Bpr 1P C 8A 10Ka 277V Ul489

Schneider Electric
SKU:
M9F52108
|
UPC:
3606481170804
$122.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 8A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Number Of Protected Poles:
1
Range:
Multi9
Provision For Padlocking:
padlockable
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Product Certifications:
IEC || CCC || CSA || UL
Mercury Free:
Yes
Mounting Support:
DIN rail
Mechanical Durability:
20000 cycles
Tropicalisation:
2 IEC 60068-1
Product Name:
Multi9 C60
Depth:
72 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Poles Description:
1P
Contact Position Indicator:
yes
Earth-Leakage Protection:
without
Electrical Durability:
10000 cycles
Network Type:
AC || DC
Halogen Content Performance:
Halogen free product
Pollution Degree:
3 EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Connections - Terminals:
ring terminal top or bottom)
Rohs Exemption Information:
Yes
Control Type:
toggle
Operating Altitude:
0...6561.68 ft (0...2000 m)
Line Rated Current:
8 A 25 °C EN/IEC 60947-2
Product Or Component Type:
miniature circuit-breaker
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relative Humidity:
95-95 % 55-55 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
Tightening Torque:
2-2 N.m top or bottom
Mounting Mode:
clip-on
Device Application:
distribution
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Height:
127 mm
Curve Code:
C
Width:
18 mm
Local Signalling:
ON/OFF indication
Overvoltage Category:
IV
9 Mm Pitches:
2
Color:
Gray
Ambient Air Temperature For Storage:
-40-80 °C
Breaking Capacity:
3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
Eu Rohs Directive:
Compliant with Exemptions
Device Short Name:
C60BPR
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP1304004EN
Suitability For Isolation:
yes EN/IEC 60947-2
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Trip Unit Technology:
thermal-magnetic
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Ambient Air Temperature For Operation:
-30-70 °C
