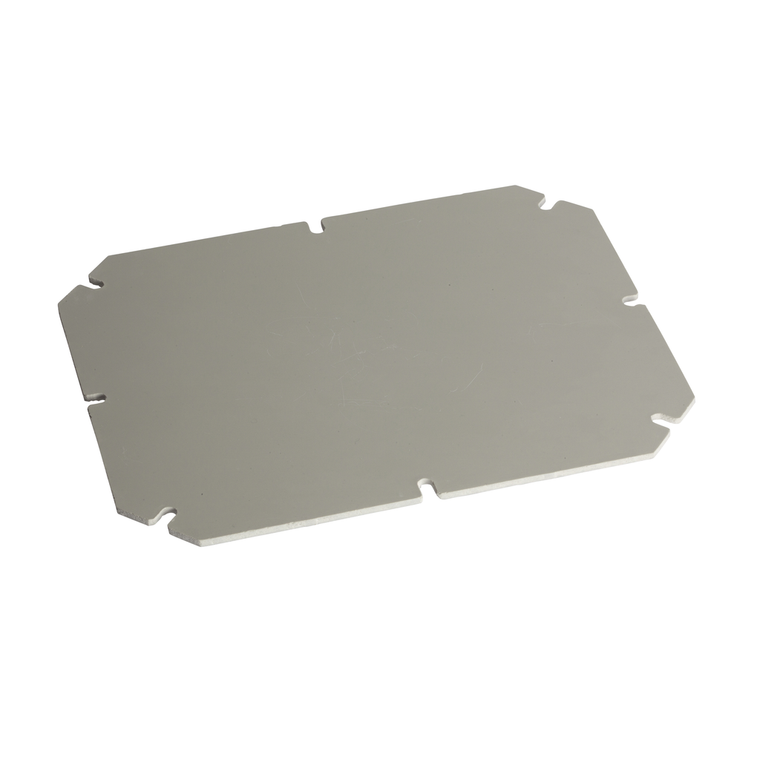

Schneider Electric NSYAMPM1916TB Steel Mounting Plate 192X164

Schneider Electric NSYAMPM1916TB Steel Mounting Plate 192X164

Schneider Electric
SKU:
NSYAMPM1916TB
|
UPC:
3606480166082
Availability:
Contact us to confirm availability and lead times.
$15.43
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Thalassa TBP/TBS Mounting plate plain. For boxes H is 175 x W is 150 mm. Mounting accessory. Multi-purpose application. Thickness 15 mm. Mounting on back studs. Fixing by screws type M4 self tapping. Galvanized Steel.
Additional Information
Height:
nominal 192 mm || real 140 mm
Warranty:
18 months
Material:
galvanised steel
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP2202003EN
Net Weight:
0.1 kg
Width:
nominal 164 mm || real 1685 mm
Mounting Plate Description:
plain
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Range:
Thalassa
Thickness:
1.5 mm
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
Device Composition:
1 mounting plate
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free:
Yes
Device Application:
multi-purpose
Circularity Profile:
N/A
Range Compatibility:
Thalassa Thalassa TBS || Thalassa Thalassa TBP
Sustainable Offer Status:
Green Premium product
Mounting Location:
back studs
Toxic Heavy Metal Free:
Yes
Product Or Component Type:
mounting plate
Accessory / Separate Part Category:
mounting accessory
Fixing Mode:
by screws M4 self tapping - on back studs
