Schneider Electric

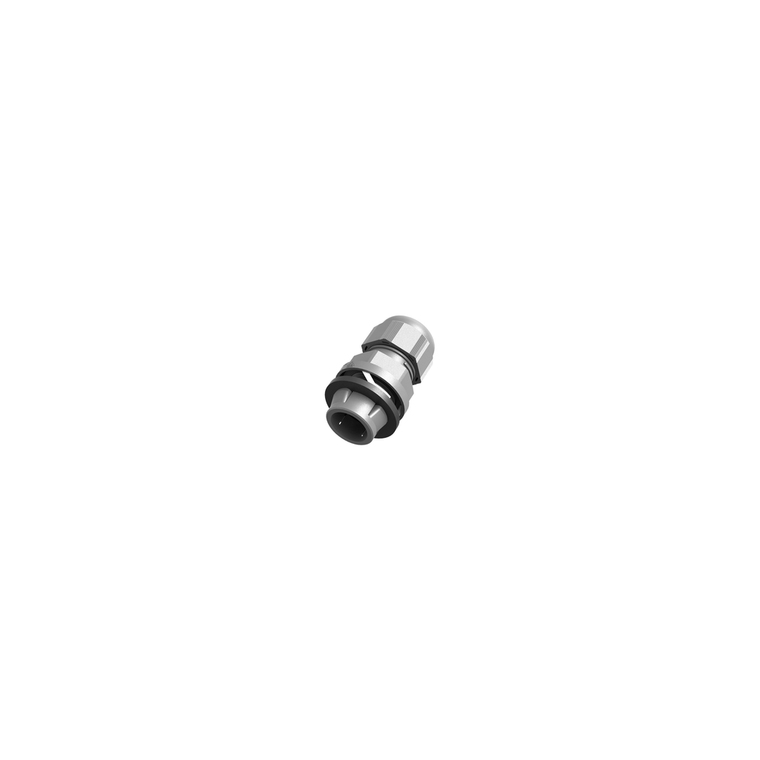

Schneider Electric NSYCGSP40 Cable Gland Snap-In M40

SKU:

NSYCGSP40

UPC:

3.60648E+12

MPN:

Condition:

New

Environmental Characteristic:

UV resistant

Range Compatibility:

Spacial Spacial CRN || Spacial Spacial S3D || Thalassa Thalassa PLM || Spacial Spacial S3X

Cable Entry:

cable gland M40

Flame Retardance:

V2 conforming to UL 94

Material:

seal CR (chloroprene) || body PA (polyamide) 6

Product Certifications:

VDE

Reach Free Of Svhc:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Product Or Component Type:

cable gland

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range:

Spacial

Fixing Mode:

push and turn clockwise

Rohs Exemption Information:

Yes

Toxic Heavy Metal Free:

Yes

Accessory / Separate Part Category:

cable management accessory

Net Weight:

0.066 kg

Device Composition:

1 cable gland || 1 seal

Color:

Gray RAL 7035)

Mercury Free:

Yes

Ip Degree Of Protection:

IP68 IEC 60529 5 bar, 30 min

Mounting Location:

enclosure top || enclosure bottom

Ambient Air Temperature For Operation:

-20-100 °C permanent || -30-150 °C intermittent

Quantity Per Set:

set of 5

Catalog:

View

Datasheet:

View
