Schneider Electric

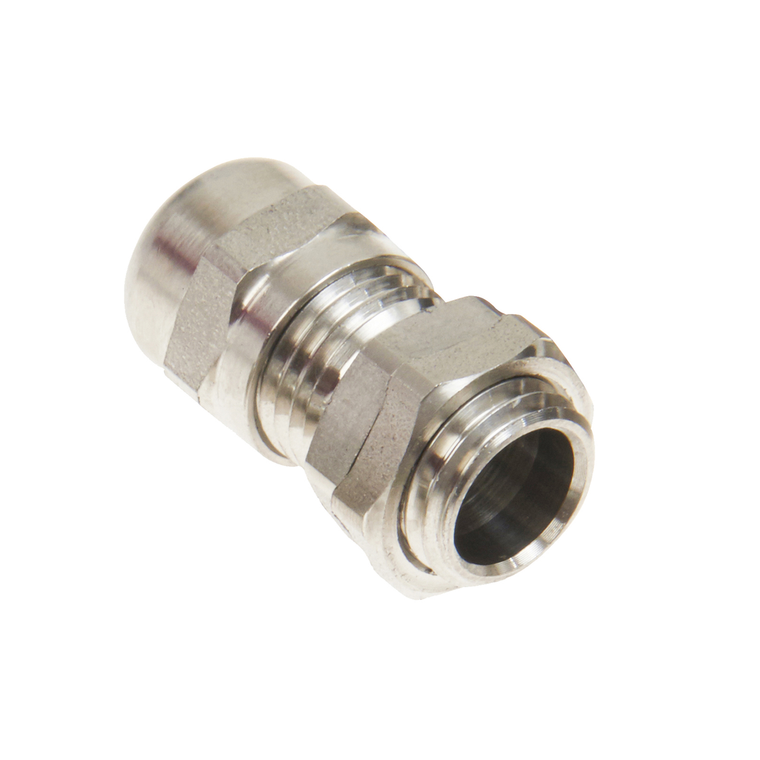

Schneider Electric NSYCGX32 Cable Gland S.Steel 304L+Nut M32

SKU:

NSYCGX32

UPC:

3606481360250

MPN:

Condition:

New

Cable Entry:

cable gland M32

Ip Degree Of Protection:

IP68 IEC 60529 5 bar, 30 min

Height:

41.5 mm

Mounting Location:

enclosure top || enclosure bottom

Range Compatibility:

Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X

Net Weight:

0.078 kg

Accessory / Separate Part Category:

cable management accessory

Flame Retardance:

V2 conforming to UL 94

Fixing Mode:

screwed || by nut

Device Composition:

1 cable gland || 1 lock nut || 1 seal

Reach Free Of Svhc:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

VDE

Range:

Spacial

Material:

seal CR (chloroprene) || body stainless steel AISI 304L

Quantity Per Set:

set of 2

Toxic Heavy Metal Free:

Yes

Color:

Gray

Mercury Free:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information:

Yes

Product Or Component Type:

cable gland

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-20-100 °C permanent || -40-150 °C intermittent
