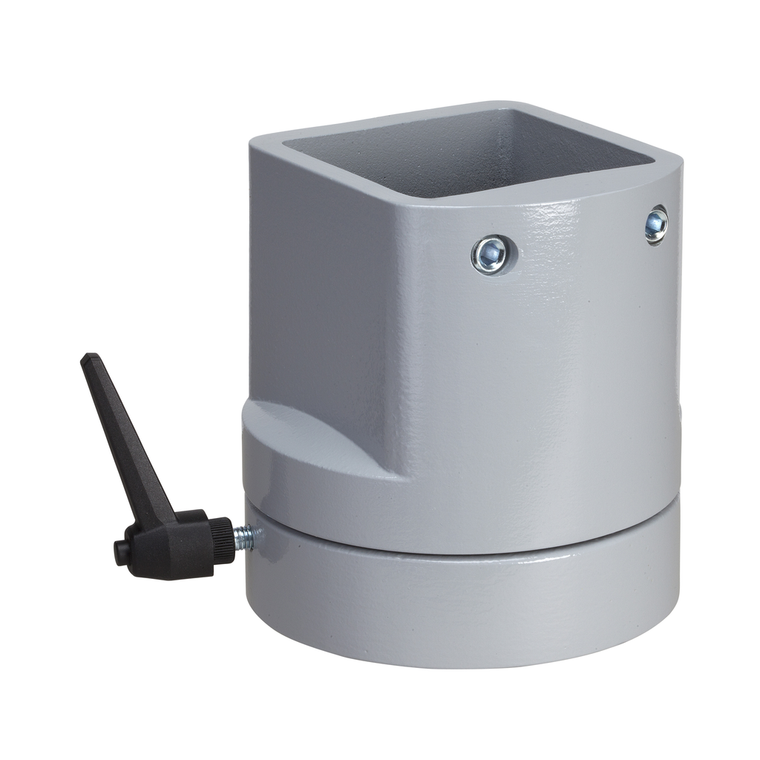

Schneider Electric NSYCMUCR50 Cm Straight Coupling 50Mm Square

Schneider Electric NSYCMUCR50 Cm Straight Coupling 50Mm Square

Schneider Electric
SKU:
NSYCMUCR50
|
UPC:
3606480213069
Availability:
Contact us to confirm availability and lead times.
$429.81
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Spacial S3CM HMI vertical rotating fixing, square 50mm. Hight 115 mm, Diameter 96 mm . Bent and rotating enclosure fixing. Mounting on enclosure, in vertical position . Operating angle: 310°. Permanent permissible load: 1.25 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.
Additional Information
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Reach Free Of Svhc:
Yes
Range:
Spacial
Mounting Location:
on enclosure, in vertical position
Height:
115 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Net Weight:
1.3 kg
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Operating Angle:
310 °
Environmental Disclosure:
ENVPEP100104EN
Diameter:
96 mm
Quantity Per Set:
set of 1
Toxic Heavy Metal Free:
Yes
Accessory / Separate Part Category:
cable management accessory
Product Or Component Type:
bent and rotating enclosure fixing
Fixing Mode:
fixing through the support surface by 4 screws M6
Mercury Free:
Yes
Range Compatibility:
Spacial Spacial S3CM
Surface Finish:
epoxy-polyester powder
Material:
aluminium
Mounting Support:
for 50 mm square tube || option of passing cables through the inside
Device Composition:
fixing elements || 1 rotating fixing
Device Application:
multi-purpose
Color:
Gray RAL 7040)
Permanent Permissible Load:
1.25 kg
Rohs Exemption Information:
Yes
