Schneider Electric NSYCR150WU2 Resist.Heateralum 150W,110-250V
Schneider Electric
$55.55
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

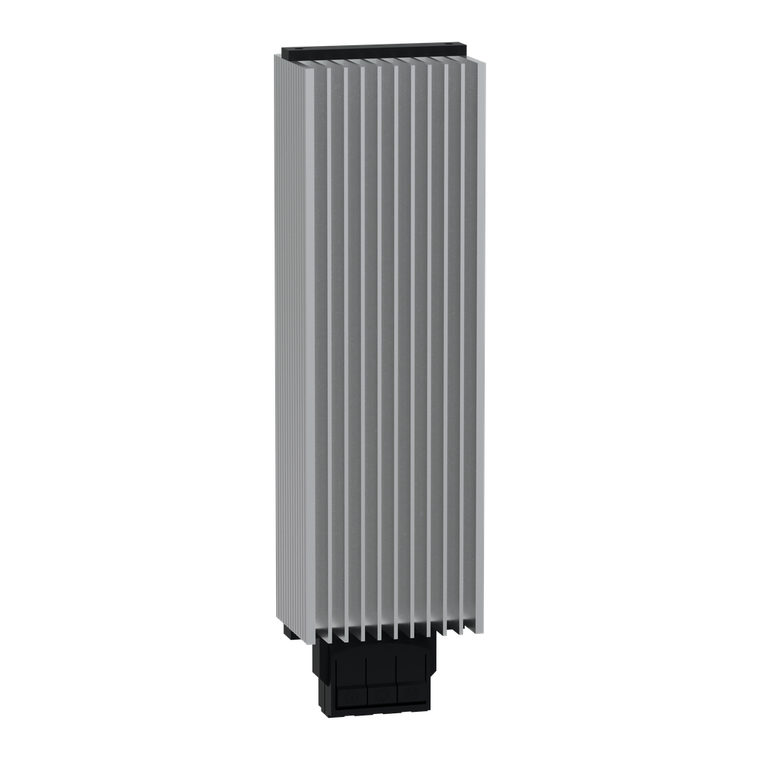

Schneider Electric NSYCR150WU2 Resist.Heateralum 150W,110-250V
ClimaSys PTC heating resistance. 150W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operating Position:
- vertical
- Input Voltage:
- 110...250 V AC 50/60 Hz
- Product Or Component Type:
- resistance heater
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection:
- IP20
- Sustainable Offer Status:
- Green Premium product
- Height:
- 285 mm
- Product Name:
- ClimaSys CR
- Mounting Support:
- 35 mm DIN rail
- Range:
- ClimaSys
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 70 mm
- Material:
- body extruded aluminium
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP2103011EN
- Condition Of Use:
- heaters must be installed with a thermal controller || air sealed enclosure || electrical protection is needed
- Product Certifications:
- VDE || UL
- Fixing Mode:
- by clips
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Lead Time:
- Usually Ships within 4 Weeks
- Rohs Exemption Information:
- Yes
- Width:
- 80 mm
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Power Range:
- 150 W
- Catalog:
- View
- Datasheet:
- View
