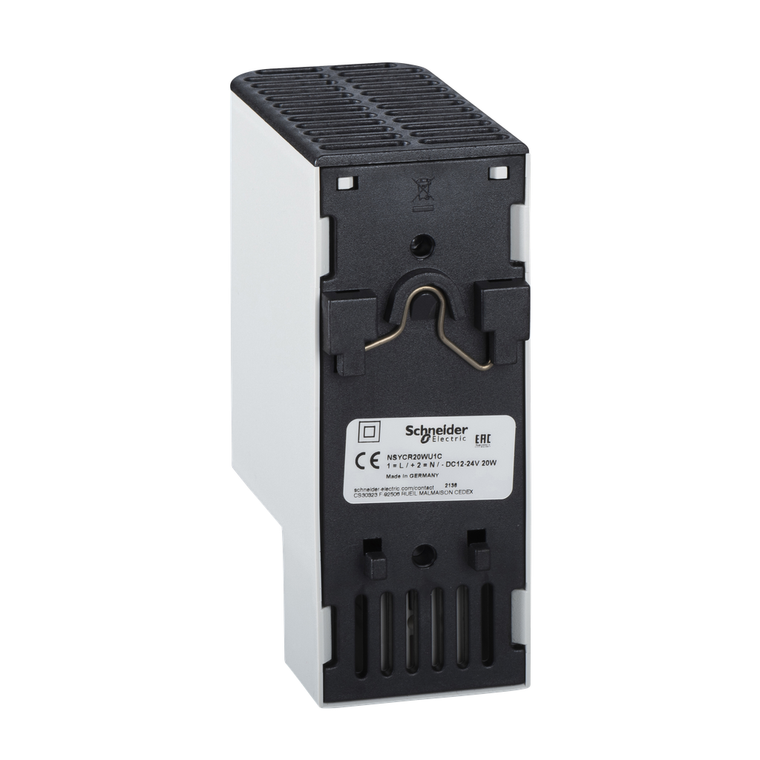

Schneider Electric NSYCR20WU1C Resist.Heat.Insul.20W, 12-24V
Schneider Electric
$64.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCR20WU1C Resist.Heat.Insul.20W, 12-24V
ClimaSys PTC heating resistance insulate. 20W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
- Condition Of Use:
- heaters must be installed with a thermal controller || electrical protection is needed || air sealed enclosure
- Ip Degree Of Protection:
- IP20
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Electrical Insulation Class:
- class II
- Operating Position:
- vertical
- Environmental Disclosure:
- ENVPEP2103011EN
- Circularity Profile:
- N/A
- Range:
- ClimaSys
- Product Or Component Type:
- resistance heater
- Eu Rohs Directive:
- Compliant with Exemptions
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Product Name:
- ClimaSys CR
- Height:
- external 98 mm
- Electrical Connection:
- 4 screw terminals 2.5 mm²
- Mercury Free:
- Yes
- Material:
- body extruded aluminium || Cover plastic
- Depth:
- external 75 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Width:
- external 38 mm
- Input Voltage:
- 12...24 V DC
- Product Certifications:
- VDE
- Fixing Mode:
- by clips
- Mounting Support:
- 35 mm DIN rail
- Power Range:
- 20 W
- Catalog:
- View
- Datasheet:
- View
