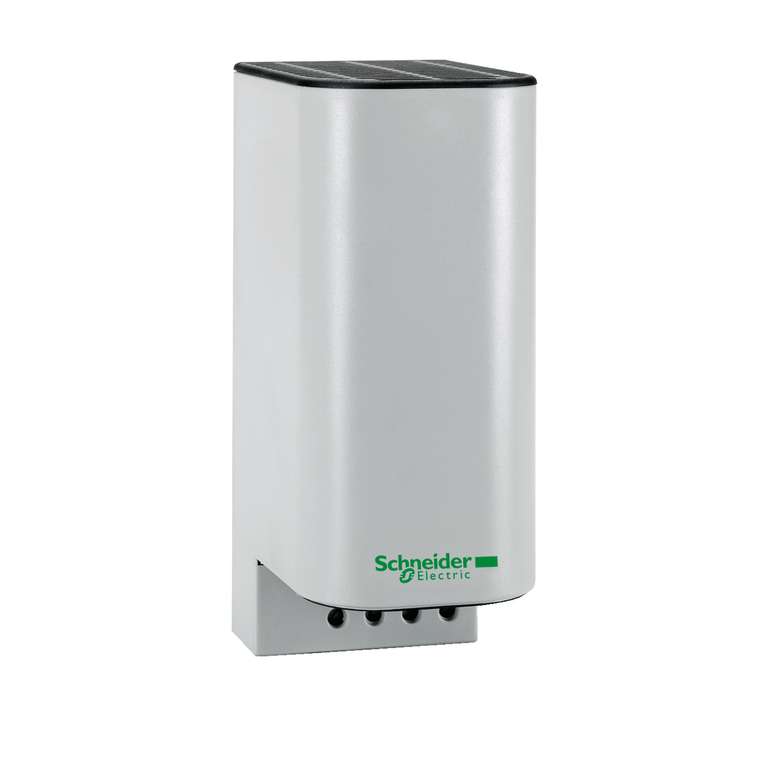

Schneider Electric NSYCR50WU2C Resist.Heat.Insul.50W,110-250V
Schneider Electric
$66.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCR50WU2C Resist.Heat.Insul.50W,110-250V
ClimaSys PTC heating resistance insulate. 50W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
- Electrical Connection:
- 4 screw terminals 2.5 mm²
- Product Name:
- ClimaSys CR
- Power Range:
- 50 W
- Depth:
- external 90 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Operating Position:
- vertical
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height:
- external 110 mm
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP2103011EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Fixing Mode:
- by clips
- Electrical Insulation Class:
- class II
- Product Or Component Type:
- resistance heater
- Warranty:
- 18 months
- Range:
- ClimaSys
- Mounting Support:
- 35 mm DIN rail
- Ip Degree Of Protection:
- IP20
- Input Voltage:
- 110...250 V AC 50/60 Hz
- Condition Of Use:
- electrical protection is needed || air sealed enclosure || heaters must be installed with a thermal controller
- Mercury Free:
- Yes
- Product Certifications:
- UL || VDE
- Circularity Profile:
- N/A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Width:
- external 60 mm
- Material:
- body extruded aluminium || Cover plastic
- Datasheet:
- View
