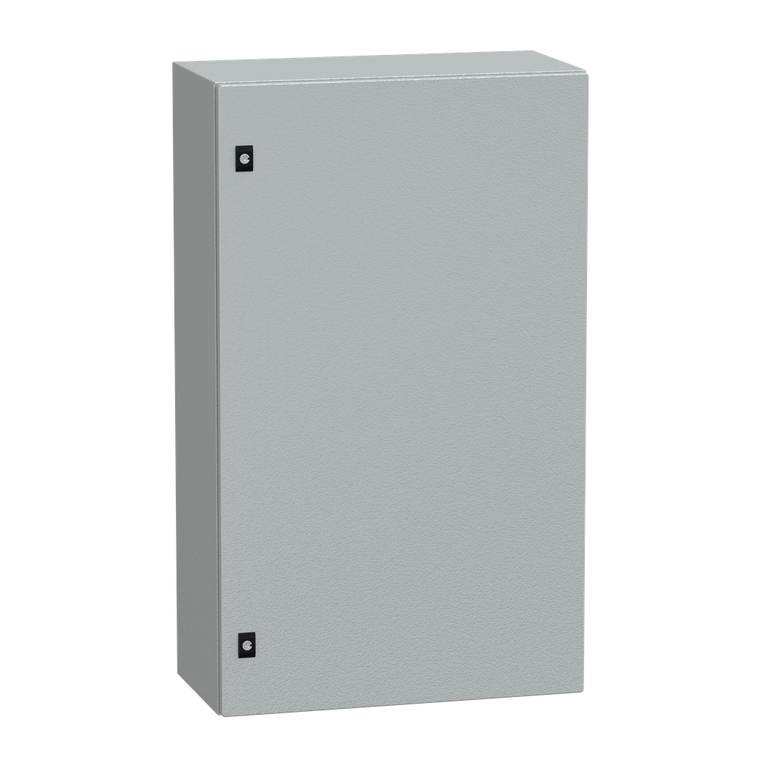

Schneider Electric NSYCRN106300 Crn 1000X600X300 One Plain Door

(No reviews yet) Write a Review
SKU:
NSYCRN106300
UPC:
3.60648E+12
Condition:
New
Mercury Free:
Yes
Color:
Gray RAL 7035)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
UL || cUL || DNV-GL
Enclosure Nominal Width:
600 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Lock Type:
3 mm double-bar lock
Door Type:
Solid
Installation Accessory Type:
wall-mounting
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Surface Finish:
epoxy-polyester powder
Number Of Doors:
front face 1
Ip Degree Of Protection:
IP66 IEC 60529
Door Opening Side:
reversible 120 °)
Material:
body steel
Ik Degree Of Protection:
IK10 IEC 62262
Sustainable Offer Status:
Green Premium product
Mounting Plate Description:
without mounting plate
Type Of Gland Plate:
standard
Range:
Spacial
Rohs Exemption Information:
Yes
Variant Particularity:
back welded with double profile forming a protected sealed area || sides made from a single folded section
Enclosure Nominal Depth:
300 mm
Product Or Component Type:
compact enclosure
Net Weight:
28 kg
Standards:
IEC 62208
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP100104EN
Accessibility For Operation:
front
Warranty:
18 months
Product Name:
Spacial CRN
Enclosure Nominal Height:
1000 mm
Device Application:
multi-purpose
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Removable Parts:
door by hinges || cable gland plate by screws
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric NSYCRN106300 Crn 1000X600X300 One Plain Door
  • Schneider Electric NSYCRN106300 Crn 1000X600X300 One Plain Door
$365.91

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 1000 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
