Schneider Electric

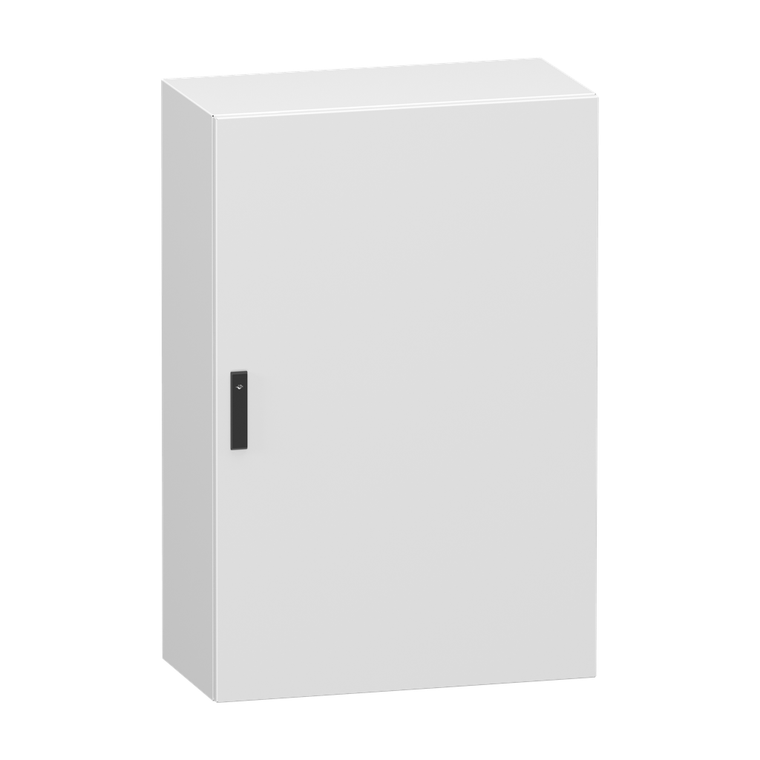

Schneider Electric NSYCRN128400 Plain steel door, PanelSeT CRN, without mounting plate, 1200x800x400mm, IP66, IK10, RAL7035

SKU:

NSYCRN128400

UPC:

MPN:

NSYCRN128400

Condition:

New

Removable Parts:

door by hinges || cable gland plate by screws

Door Type:

Solid

Number Of Doors:

front face 1

Range:

PanelSeT

Door Opening Side:

reversible 120°)

Rohs Exemption Information:

Yes

Height:

1200 mm

Circularity Profile:

N/A

Ip Degree Of Protection:

IP66 IEC 60529

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Country of Origin:

Spain

Color:

Gray RAL 7035)

Lock Type:

3 points lock, 5 mm double-bar

Product Name:

PanelSeT CRN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Installation Accessory Type:

wall-mounting

Enclosure Nominal Height:

1200 mm

Accessibility For Operation:

front

Mounting Plate Description:

without mounting plate

Type Of Gland Plate:

standard

Product Certifications:

cUL || UL

Enclosure Nominal Depth:

400 mm

Device Application:

multi-purpose

Ik Degree Of Protection:

IK10 IEC 62262

Environmental Disclosure:

ENVPEP100104EN

Surface Finish:

epoxy-polyester powder

Width:

800 mm

Mercury Free:

Yes

Device Composition:

1 body || 1 door || 1 lock || 2 cable gland plate bottom

Enclosure Nominal Width:

800 mm

Net Weight:

52.7 kg

Standards:

IEC 62208

Sustainable Offer Status:

Green Premium product

Material:

body steel

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Weight:

52.7 kg

Variant Particularity:

single piece body

Product Or Component Type:

compact enclosure
