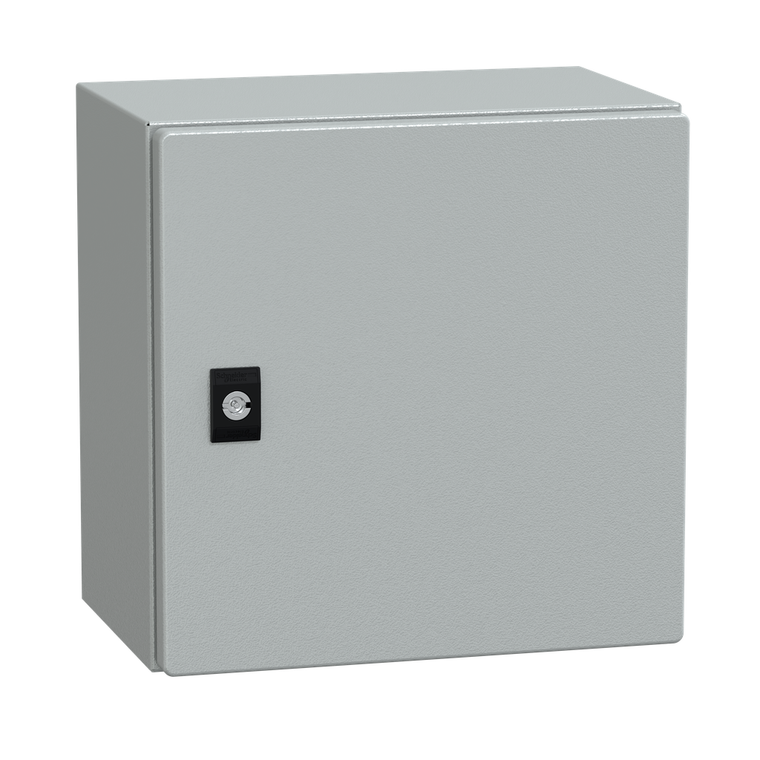

Schneider Electric NSYCRN33200 Crn 300X300X200 One Plain Door

(No reviews yet) Write a Review
SKU:
NSYCRN33200
UPC:
3.60648E+12
Condition:
New
Surface Finish:
epoxy-polyester powder
Removable Parts:
door by hinges || cable gland plate by screws
Standards:
IEC 62208
Enclosure Nominal Depth:
200 mm
Product Or Component Type:
compact enclosure
Sustainable Offer Status:
Green Premium product
Color:
Gray RAL 7035)
Mercury Free:
Yes
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Mounting Plate Description:
without mounting plate
Environmental Disclosure:
ENVPEP100104EN
Lock Type:
3 mm double-bar lock
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ip Degree Of Protection:
IP66 IEC 60529
Door Type:
Solid
Enclosure Nominal Height:
300 mm
Warranty:
18 months
Enclosure Nominal Width:
300 mm
Circularity Profile:
N/A
Net Weight:
4.873 kg
Accessibility For Operation:
front
Rohs Exemption Information:
Yes
Product Certifications:
cUL || UL || DNV-GL
Material:
body steel
Door Opening Side:
reversible 120 °)
Type Of Gland Plate:
standard
Variant Particularity:
back welded with double profile forming a protected sealed area || sides made from a single folded section
Product Name:
Spacial CRN
Number Of Doors:
front face 1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Application:
multi-purpose
Range:
Spacial
Installation Accessory Type:
wall-mounting
Ik Degree Of Protection:
IK10 IEC 62262
Brochure:
View
Catalog:
View
Datasheet:
View
  • Schneider Electric NSYCRN33200 Crn 300X300X200 One Plain Door
  • Schneider Electric NSYCRN33200 Crn 300X300X200 One Plain Door
$100.83

Description

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 300 mm x (H) 300 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
