Schneider Electric NSYCRN46250 Crn 400X600X250 One Plain Door
Schneider Electric
$183.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN46250 Crn 400X600X250 One Plain Door
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

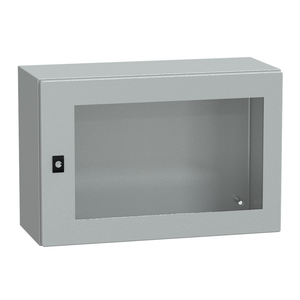

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 400 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Material:
- body steel
- Door Type:
- Solid
- Enclosure Nominal Width:
- 600 mm
- Warranty:
- 18 months
- Color:
- Gray RAL 7035)
- Product Certifications:
- cUL || UL || DNV-GL
- Environmental Disclosure:
- ENVPEP100104EN
- Installation Accessory Type:
- wall-mounting
- Accessibility For Operation:
- front
- Device Composition:
- 1 body || 1 cable gland plate || 1 door || 1 lock
- Net Weight:
- 10.816 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Enclosure Nominal Height:
- 400 mm
- Mounting Plate Description:
- without mounting plate
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Product Name:
- Spacial CRN
- Ip Degree Of Protection:
- IP66 IEC 60529
- Product Or Component Type:
- compact enclosure
- Device Application:
- multi-purpose
- Type Of Gland Plate:
- standard
- Standards:
- IEC 62208
- Door Opening Side:
- reversible 120 °)
- Range:
- Spacial
- Enclosure Nominal Depth:
- 250 mm
- Surface Finish:
- epoxy-polyester powder
- Removable Parts:
- door by hinges || cable gland plate by screws
- Number Of Doors:
- front face 1
- Lock Type:
- 3 mm double-bar lock
- Ik Degree Of Protection:
- IK10 IEC 62262
