Schneider Electric NSYCRN54200P Crn 500X400X200 One Pl Door W Ch
Schneider Electric
$162.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN54200P Crn 500X400X200 One Pl Door W Ch

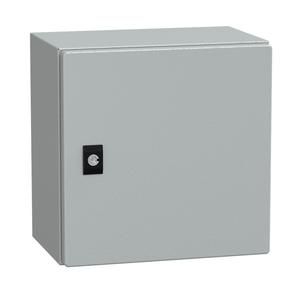

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 500 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Type Of Gland Plate:
- standard
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP100104EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Door Opening Side:
- reversible 120 °)
- Ik Degree Of Protection:
- IK10 IEC 62262
- Installation Accessory Type:
- wall-mounting
- Standards:
- IEC 62208
- Enclosure Nominal Width:
- 400 mm
- Accessibility For Operation:
- front
- Product Certifications:
- UL || cUL || DNV-GL
- Surface Finish:
- enclosure epoxy-polyester powder
- Product Or Component Type:
- compact enclosure
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Composition:
- 1 body || 1 cable gland plate || 1 door with lock || 1 mounting plate
- Door Type:
- Solid
- Mounting Plate Description:
- plain
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range:
- Spacial
- Enclosure Nominal Height:
- 500 mm
- Color:
- enclosure Gray RAL 7035)
- Number Of Doors:
- front face 1
- Net Weight:
- 10.928 kg
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66 IEC 60529
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Rohs Exemption Information:
- Yes
- Lock Type:
- 3 mm double-bar lock
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- multi-purpose
- Enclosure Nominal Depth:
- 200 mm
- Material:
- enclosure steel || mounting plate galvanised steel
- Product Name:
- Spacial CRN
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
