Schneider Electric

Schneider Electric NSYCRN66250 Crn 600X600X250 One Plain Door

(No reviews yet) Write a Review
SKU:
NSYCRN66250
UPC:
3606480211997
Condition:
New
Enclosure Nominal Height:
600 mm
Product Or Component Type:
compact enclosure
Device Composition:
1 body || 1 cable gland plate || 1 door || 1 lock
Net Weight:
15.094 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Standards:
IEC 62208
Ik Degree Of Protection:
IK10 IEC 62262
Range:
Spacial
Accessibility For Operation:
front
Door Opening Side:
reversible 120 °)
Ip Degree Of Protection:
IP66 IEC 60529
Number Of Doors:
front face 1
Lock Type:
3 mm double-bar lock
Enclosure Nominal Depth:
250 mm
Rohs Exemption Information:
Yes
Product Name:
Spacial CRN
Device Application:
multi-purpose
Variant Particularity:
sides made from a single folded section || back welded with double profile forming a protected sealed area
Mercury Free:
Yes
Removable Parts:
door by hinges || cable gland plate by screws
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Circularity Profile:
N/A
Installation Accessory Type:
wall-mounting
Color:
Gray RAL 7035)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Material:
body steel
Type Of Gland Plate:
standard
Environmental Disclosure:
ENVPEP100104EN
Surface Finish:
epoxy-polyester powder
Door Type:
Solid
Enclosure Nominal Width:
600 mm
Sustainable Offer Status:
Green Premium product
Product Certifications:
UL || cUL || DNV-GL
Mounting Plate Description:
without mounting plate
Brochure:
View
Catalog:
View
Datasheet:
View
$226.39

Description

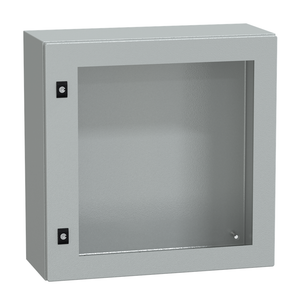

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 600 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
