Schneider Electric NSYCRN75250 Crn 700X500X250 One Plain Door
Schneider Electric
$203.28
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCRN75250 Crn 700X500X250 One Plain Door
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

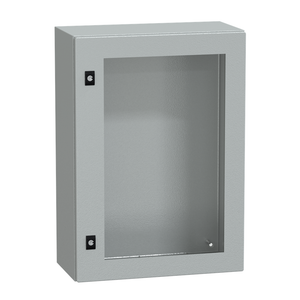

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 700 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
- Environmental Disclosure:
- ENVPEP100104EN
- Standards:
- IEC 62208
- Enclosure Nominal Height:
- 700 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Number Of Doors:
- front face 1
- Sustainable Offer Status:
- Green Premium product
- Removable Parts:
- door by hinges || cable gland plate by screws
- Surface Finish:
- epoxy-polyester powder
- Mercury Free:
- Yes
- Material:
- body steel
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Door Opening Side:
- reversible 120 °)
- Type Of Gland Plate:
- standard
- Product Name:
- Spacial CRN
- Range:
- Spacial
- Enclosure Nominal Depth:
- 250 mm
- Enclosure Nominal Width:
- 500 mm
- Device Application:
- multi-purpose
- Warranty:
- 18 months
- Product Certifications:
- cUL || UL || DNV-GL
- Net Weight:
- 15 kg
- Door Type:
- Solid
- Product Or Component Type:
- compact enclosure
- Variant Particularity:
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Accessibility For Operation:
- front
- Ik Degree Of Protection:
- IK10 IEC 62262
- Color:
- Gray RAL 7035)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Composition:
- 1 body || 1 cable gland plate || 1 door || 1 lock
- Lock Type:
- 3 mm double-bar lock
- Installation Accessory Type:
- wall-mounting
- Mounting Plate Description:
- without mounting plate
- Brochure:
- View
- Datasheet:
- View
