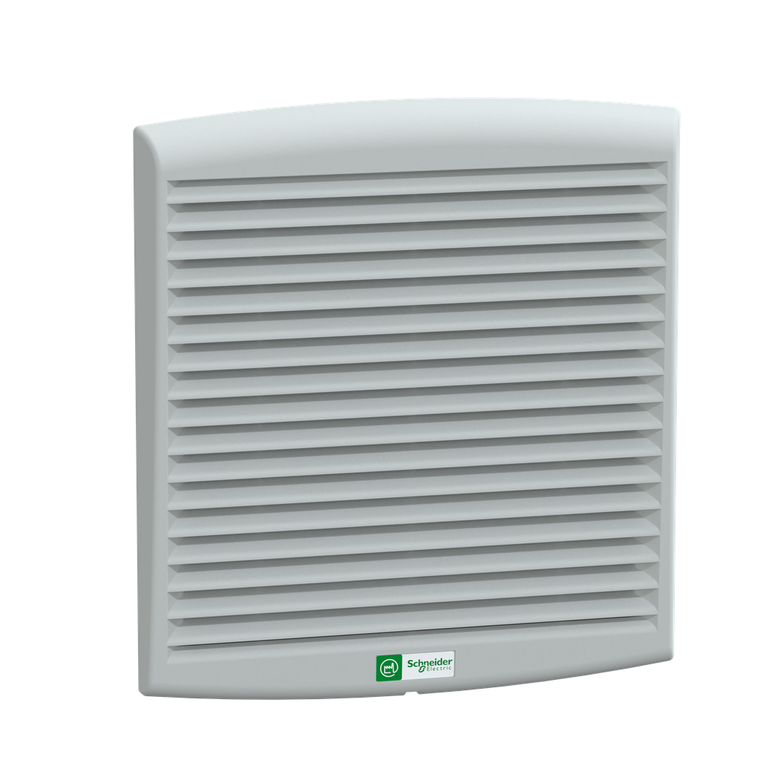

Schneider Electric NSYCVF300M115PF Filterfan 300M3/H 115V Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYCVF300M115PF Filterfan 300M3/H 115V Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYCVF300M115PF

UPC:

3606480151293

MPN:

Condition:

New

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

ENVEOLI1107017EN

Line Rated Current:

0.35-0.35 A 50 Hz || 0.32-0.32 A 60 Hz

Ip Degree Of Protection:

IP54

Height:

external 268 mm

Eu Rohs Directive:

Compliant with Exemptions

Depth:

external 116 mm

Type Of Ventilation Filter:

standard

Maximum Pressure:

158 Pa flow rate 0 m³/h

Environmental Disclosure:

ENVPEP110717EN

Condition Of Use:

flow rates depends on the work point, see ProClima software || surrounding environment must be relatively clean || outside temperature must be 5 °C lower than inside temperature || filter must be cleaned and replaced regularly || overfrequent filter

Bearing Type:

ball

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Color:

outlet grille Gray RAL 7035)

Air Flow:

free flow rate with standard filter: 300 m3/h at 50 Hz || free flow rate with standard filter: 350 m3/h at 60 Hz

Warranty:

18 months

Noise Level:

55-56 dB

Connections - Terminals:

Faston connector

Material:

outlet grille injected thermoplastic (ASA PC)

Product Or Component Type:

fan

[Us] Rated Supply Voltage:

75...126 V

Width:

external 248 mm

Cut-Out Dimensions:

223 x 223 mm

Sustainable Offer Status:

Green Premium product

Product Name:

ClimaSys CV

Device Composition:

1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template || 1 power cord

Power Range:

36 W 50 Hz || 36 W 60 Hz

Net Weight:

1.3 kg

Lead Time:

Usually Ships within 4 Weeks

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-10-70 °C

Range:

ClimaSys

Input Voltage:

115 V 50/60 Hz

Ambient Air Temperature For Storage:

-40-70 °C
