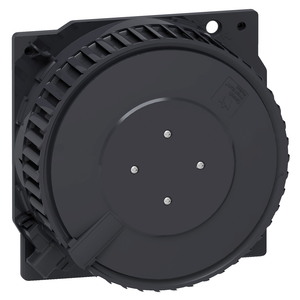

Schneider Electric NSYCVF550M230FB Fanbox 550M3/H 230V Ac 50/60Hz

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYCVF550M230FB Fanbox 550M3/H 230V Ac 50/60Hz

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYCVF550M230FB

UPC:

3606480678769

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP110717EN

Product Or Component Type:

fanbox without grille and filter

Rohs Exemption Information:

Yes

Air Flow:

free flow rate: 550 m3/h at 50 Hz || 550 m3/h at 60 Hz

Mercury Free:

Yes

Product Specific Application:

outdoor heavy duty

Noise Level:

60-60 dB

Power Range:

72...88 W

Product Certifications:

CE || UL UL 508 A || CSA CSA C22.2 || ecodesign directive 2009/125/EC

Input Voltage:

230 V AC 50/60 Hz

Range:

ClimaSys

Color:

dark grey RAL 7016)

Condition Of Use:

flow rates depends on the work point, see ProClima software || overfrequent filter replacement should be avoided || outside temperature must be 5 °C lower than inside temperature || filter must be cleaned and replaced regularly || surrounding enviro

Height:

external 223 mm

Ip Degree Of Protection:

grid IP55 || IP44

Connections - Terminals:

spring clamp terminal

Ambient Air Temperature For Operation:

-40-65 °C

Range Compatibility:

Thalassa PHD || Spacial S3HD || Spacial SFHD

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

1.7 kg

Circularity Profile:

ENVEOLI1107017EN

Ambient Air Temperature For Storage:

-40-80 °C

Bearing Type:

ball

Product Name:

ClimaSys CV

Device Composition:

1 fanbox || 4 screw

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Maximum Pressure:

350 Pa flow rate 0 m³/h

Line Rated Current:

0.3-0.4 A 50 Hz

[Us] Rated Supply Voltage:

230 V AC +/- 10 %

Depth:

external 90 mm

Width:

external 223 mm

Eu Rohs Directive:

Compliant with Exemptions

Sustainable Offer Status:

Green Premium product

Brochure:

View

Catalog:

View

Datasheet:

View
