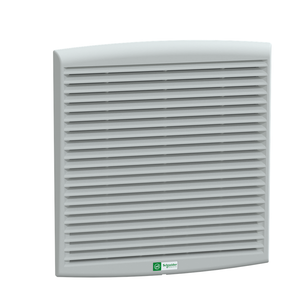

Schneider Electric NSYCVF560M115PF Filterfan 560M3/H 115V Ip54
SKU:
NSYCVF560M115PF
UPC:
3606480151330
MPN:
Condition:
New
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Power Range:
65 W 50 Hz || 83 W 60 Hz
Cut-Out Dimensions:
291 x 291 mm
Net Weight:
3.2 kg
Connections - Terminals:
terminal block
Circularity Profile:
ENVEOLI1107017EN
Height:
external 336 mm
Ambient Air Temperature For Operation:
-15-60 °C
Condition Of Use:
outside temperature must be 5 °C lower than inside temperature || overfrequent filter replacement should be avoided || flow rates depends on the work point, see ProClima software || filter must be cleaned and replaced regularly || surrounding enviro
Line Rated Current:
0.6-0.6 A 50 Hz || 0.72-0.72 A 60 Hz
Color:
outlet grille Gray RAL 7035)
Air Flow:
free flow rate with standard filter: 562 m3/h at 50 Hz || free flow rate with standard filter: 586 m3/h at 60 Hz
Maximum Pressure:
140 Pa flow rate 0 m³/h
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP110717EN
Input Voltage:
115 V 50/60 Hz
Product Or Component Type:
fan
[Us] Rated Supply Voltage:
103...122 V
Ambient Air Temperature For Storage:
-40-70 °C
Warranty:
18 months
Width:
external 316 mm
Depth:
external 161 mm
Bearing Type:
ball
Ip Degree Of Protection:
IP54
Device Composition:
1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template
