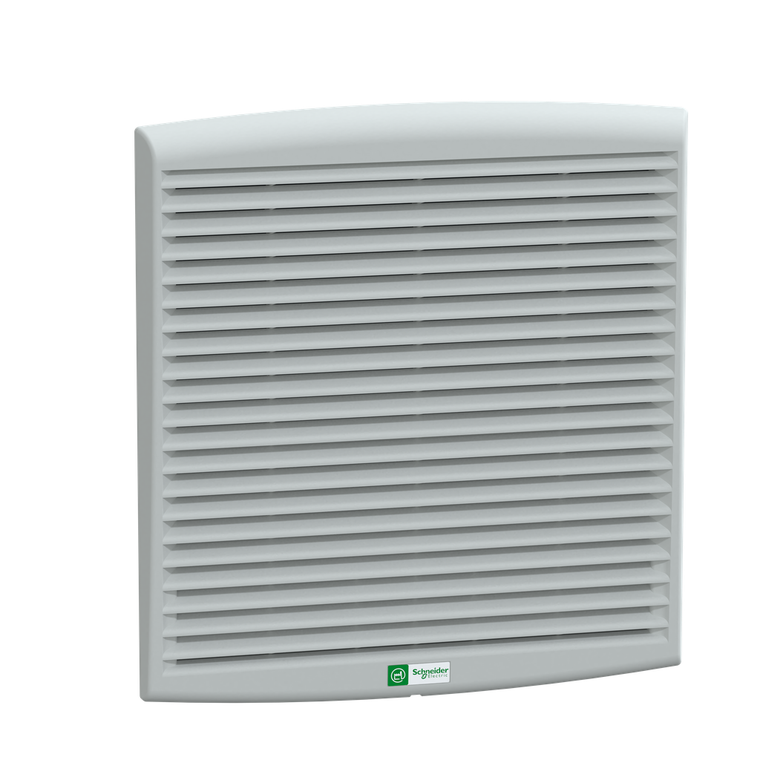

Schneider Electric NSYCVF560M230PF Filterfan 560M3/H 230V Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYCVF560M230PF Filterfan 560M3/H 230V Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYCVF560M230PF

UPC:

3606480151323

MPN:

Condition:

New

Connections - Terminals:

terminal block

Height:

external 336 mm

[Us] Rated Supply Voltage:

207...244 V

Bearing Type:

ball

Power Range:

68 W 50 Hz || 85 W 60 Hz

Material:

outlet grille injected thermoplastic (ASA PC)

Color:

outlet grille Gray RAL 7035)

Type Of Ventilation Filter:

standard

Eu Rohs Directive:

Compliant with Exemptions

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-15-60 °C

Air Flow:

free flow rate with standard filter: 562 m3/h at 50 Hz || free flow rate with standard filter: 586 m3/h at 60 Hz

Net Weight:

3.2 kg

Width:

external 316 mm

Ip Degree Of Protection:

IP54

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP110717EN

Condition Of Use:

filter must be cleaned and replaced regularly || surrounding environment must be relatively clean || outside temperature must be 5 °C lower than inside temperature || overfrequent filter replacement should be avoided || flow rates depends on the work

Input Voltage:

230 V 50/60 Hz

Depth:

external 161 mm

Product Or Component Type:

fan

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Range:

ClimaSys

Device Composition:

1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template

Range Compatibility:

Prisma P || Prisma G

Circularity Profile:

ENVEOLI1107017EN

Lead Time:

Usually Ships within 4 Weeks

Product Name:

ClimaSys CV

Line Rated Current:

0.52-0.52 A 50 Hz || 0.37-0.37 A 60 Hz

Noise Level:

59-59 dB

Maximum Pressure:

140 Pa flow rate 0 m³/h

Warranty:

18 months

Cut-Out Dimensions:

291 x 291 mm

Ambient Air Temperature For Storage:

-40-70 °C

Mercury Free:

Yes
