Schneider Electric NSYFPLS3636G 7035 Poly. Pls Body 36X36X13.5
Schneider Electric
$73.11
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYFPLS3636G 7035 Poly. Pls Body 36X36X13.5

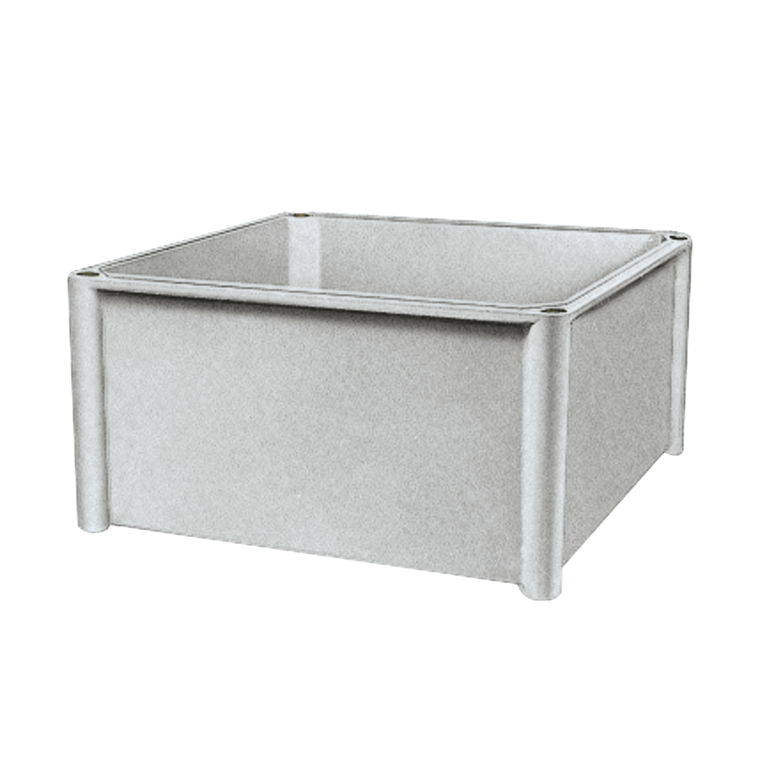

Polyester rear part of PLS box 36x36x13.5cm
- Ik Degree Of Protection:
- IK09 IEC 62262
- Circularity Profile:
- N/A
- Enclosure Nominal Width:
- 360 mm
- Product Name:
- Thalassa PLS
- Electrical Insulation Class:
- class II
- Enclosure Nominal Depth:
- 135 mm
- Enclosure Mounting:
- wall mounted
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP110704EN
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Application:
- multi-purpose
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL
- Body Type:
- one piece moulded
- Device Composition:
- 1 rear part on enclosure
- Mercury Free:
- Yes
- Fire Resistance:
- 960 °C IEC 62208
- Material:
- polyester reinforced with fibreglass
- Enclosure Nominal Height:
- 360 mm
- Device Short Name:
- PLS
- Range:
- Thalassa
- Ambient Air Temperature For Storage:
- -30-70 °C
- Standards:
- NEMA 4X || IEC 62208 || NEMA classification 13
- Rohs Exemption Information:
- Yes
- Color:
- body Gray RAL 7035)
- Product Or Component Type:
- insulating modular rear
- Type Of Front Cover:
- without
