Schneider Electric

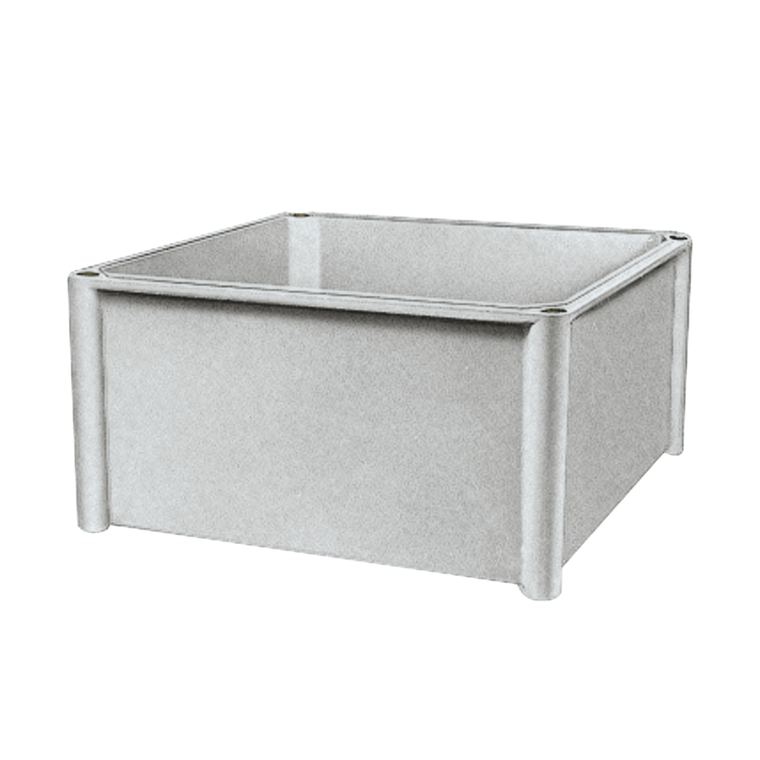

Schneider Electric NSYFPLS3654G 7035 Poly. Pls Body 36X54X13.5

SKU:

NSYFPLS3654G

UPC:

3606480774027

MPN:

Condition:

New

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Product Certifications:

UL

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Or Component Type:

insulating modular rear

Device Short Name:

PLS

Device Application:

multi-purpose

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range:

Thalassa

Environmental Disclosure:

ENVPEP110704EN

Body Type:

one piece moulded

Type Of Front Cover:

without

Electrical Insulation Class:

class II

Enclosure Nominal Width:

540 mm

Device Composition:

1 rear part on enclosure

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Height:

360 mm

Ambient Air Temperature For Storage:

-30-70 °C

Color:

body Gray RAL 7035)

Standards:

NEMA classification 13 || IEC 62208 || NEMA 4X

Ik Degree Of Protection:

IK09 IEC 62262

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP66 IEC 60529

Enclosure Nominal Depth:

135 mm

Product Name:

Thalassa PLS

Enclosure Mounting:

wall mounted

Material:

polyester reinforced with fibreglass

Mercury Free:

Yes

Fire Resistance:

960 °C IEC 62208
