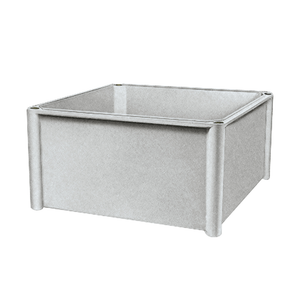

Schneider Electric NSYFPLS5454G 7035 Poly. Pls Body 54X54X13.5

SKU:

NSYFPLS5454G

UPC:

3606480774041

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Standards:

IEC 62208 || NEMA classification 13 || NEMA 4X

Ik Degree Of Protection:

IK09 IEC 62262

Sustainable Offer Status:

Green Premium product

Body Type:

one piece moulded

Ambient Air Temperature For Storage:

-30-70 °C

Enclosure Nominal Width:

540 mm

Product Or Component Type:

insulating modular rear

Enclosure Nominal Depth:

135 mm

Enclosure Mounting:

wall mounted

Ip Degree Of Protection:

IP66 IEC 60529

Circularity Profile:

N/A

Electrical Insulation Class:

class II

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110704EN

Fire Resistance:

960 °C IEC 62208

Material:

polyester reinforced with fibreglass

Device Composition:

1 rear part on enclosure

Color:

body Gray RAL 7035)

Range:

Thalassa

Device Short Name:

PLS

Rohs Exemption Information:

Yes

Product Name:

Thalassa PLS

Product Certifications:

UL

Enclosure Nominal Height:

540 mm

Type Of Front Cover:

without

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)
