Schneider Electric NSYMF88 Microperf Mount Plate 800X800

Schneider Electric NSYMF88 Microperf Mount Plate 800X800

Schneider Electric
SKU:
NSYMF88
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$141.56
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

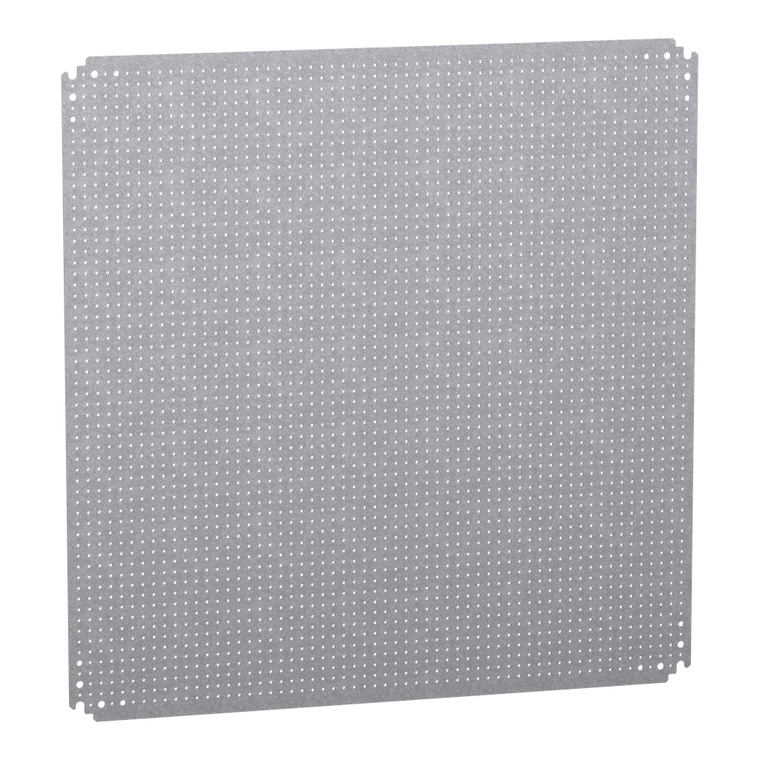

Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is800 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel.
Additional Information
Range Compatibility:
Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Product Or Component Type:
mounting plate
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Net Weight:
10.36 kg
Warranty:
18 months
Environmental Disclosure:
ENVPEP2202003EN
Range:
Spacial
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Permanent Permissible Load:
150 kg
Fixing Mode:
screwed on backstuds M8 || by fixing element
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Accessory / Separate Part Category:
mounting accessory
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Enclosure Nominal Dimensions:
H: 800 mm W: 800 mm
Width:
750 mm
Mounting Plate Description:
microperforated
Quantity Per Set:
set of 1
Depth:
125 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Application:
multi-purpose
Thickness:
2.5 mm
Mounting Location:
direct fixing on backstuds || step slide
Circularity Profile:
N/A
Material:
galvanised steel
Height:
765 mm
